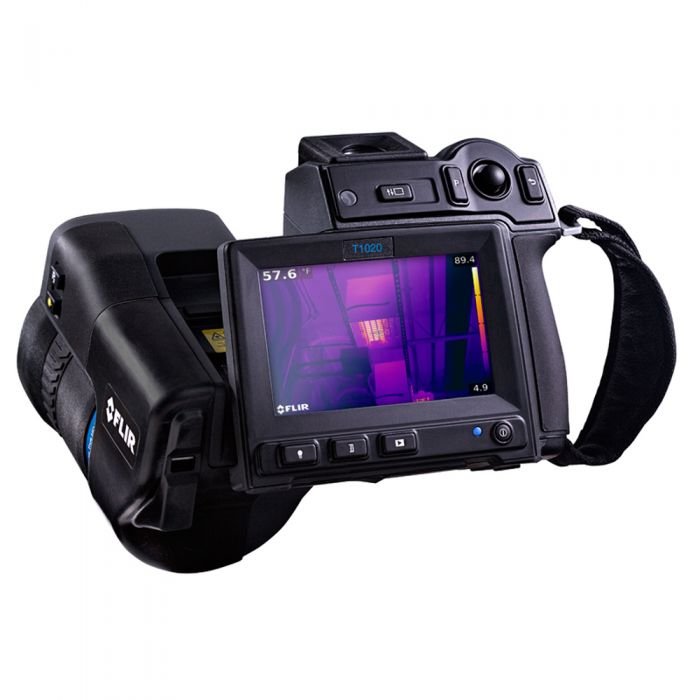

FLIR T1020 12 Degree HD Professional Thermal Imager
FLIR T1020 (12° HD) resolves substation monitoring bottlenecks through 1024 x 768 pixels and 0.20 mrad IFOV, delivering ±1.0°C precision for long-range industrial inspections.
- IR Resolution: 1024 x 768 pixels
- Measurement Accuracy: ±1°C or ±1%
- Thermal Sensitivity: <20 mK at 30°C
- Temperature Range: -40°C to 2000°C
- Spatial Resolution: 0.20 mrad IFOV
Compliance: NIST Traceable at 25°C.
$18,360.00
In Stock
FLIR T1020 12° HD Specs
| Brand | FLIR |
| Full Model Code | T1020 (72501-0101) |
| Country of Origin | Sweden |
| IR Resolution | 1024 x 768 pixels |
| Total Pixels | 786,432 (Up to 3.1MP with UltraMax) |
| Thermal Sensitivity / NETD | <20 mK at 30°C |
| Object Temperature Range | -40°C to 2000°C |
| Accuracy Statement | ±1°C (±1.8°F) or ±1% of reading at 25°C |
| Spatial Resolution - IFOV | 0.20 mrad (12° lens) |
| Frame Rate | 30 Hz |
| Field of View - FOV | 12° x 9° |
| Focus Mechanism | Continuous One-shot / Manual |
| Detector Type | Uncooled Microbolometer |
| Image Modes | MSX, UltraMax, Thermal, Visual, PIP |
| Display | 4.3 inch Touchscreen LCD |
| IP Rating | IP54 |
| Standard Warranty | 2 Years Parts & Labor / 10 Years Detector |
| Application | Long-range precision industrial inspections and substation monitoring |
