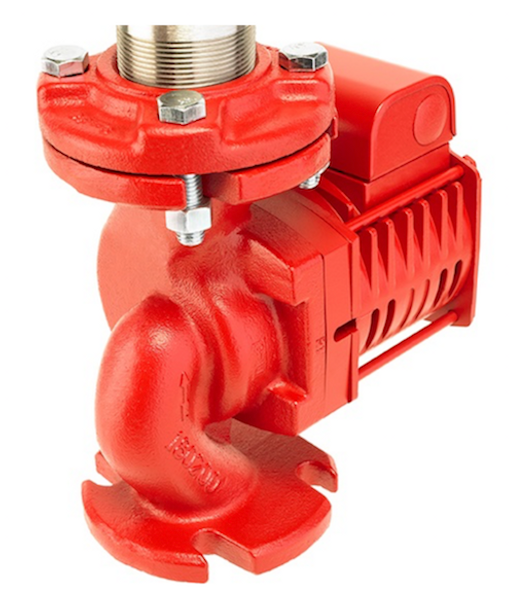

Armstrong 182212-841 E12.2 Circulator Pump Cast Iron
$543.00
In Stock
Armstrong E12.2 Cast Iron Circulator Technical Specs
| Brand | Armstrong Fluid Technology |
| Model & MPN | E12.2 (182212-841) |
| Country of Origin | Canada |
| Warranty | 1 Year |
| Connection Type | Flanged |
| Connection Size | 1-1/2" Nominal |
| Shaft Size | 0.5" (AISI 416 Stainless Steel) |
| Impeller Size | 5.1" Enclosed (Cast Iron) |
| Working Pressure | 175 PSI (12 Bar) |
| Pump Construction | Cast Iron Volute; Silicon Carbide Seal |
| Mounting Type | Horizontal In-Line (Dry Rotor) |
| Frame Size | E-Series Composite Frame |
| Pump Application | Commercial Hydronic Heating Loops |
| Pump Horsepower | 1/3 HP |
| Motor Phase | Single Phase |
| Motor RPM | 1750 RPM |
| Hertz | 60 Hz |
| Voltage | 115V |
| Max Temperature | 110 °C (230 °F) |
