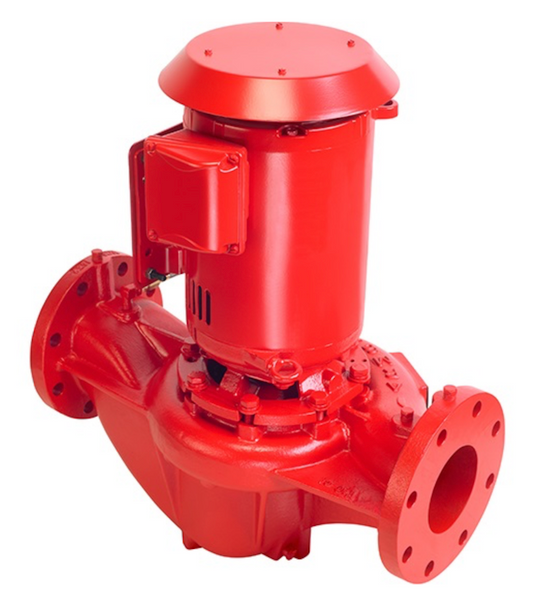

Armstrong 4380 10HP Close Coupled Vertical In-Line Pump 4x4x6
$3,650.00
In Stock
Armstrong 4380 Vertical In-Line 10HP Technical Specs
| Brand | Armstrong Fluid Technology |
| Model Number | 4380-4x4x6 (ZE41495239) |
| Country of Origin | Canada |
| Warranty | 1 Year |
| Connection Type | ANSI Flanged (In-Line) |
| Connection Size | 4" Suction x 4" Discharge |
| Shaft Size | 1.125" (Stainless Steel) |
| Impeller Size | 6.0" Nominal (Bronze) |
| Working Pressure | 175 PSI (Standard) |
| Pump Construction | Ductile Iron / Bronze Fitted; Vertical In-Line |
| Mounting Type | Close-Coupled Vertical In-Line |
| Frame Size | 215JM Frame |
| Pump Application | Commercial HVAC Circulation; Mechanical Rooms |
| Pump Horsepower | 10 HP |
| Motor Phase | 3 Phase |
| Motor RPM | 3500 RPM (High Speed) |
| Hertz | 60 Hz |
| Voltage | 230/460V |
| Max Temperature | 121 °C (250 °F) |
