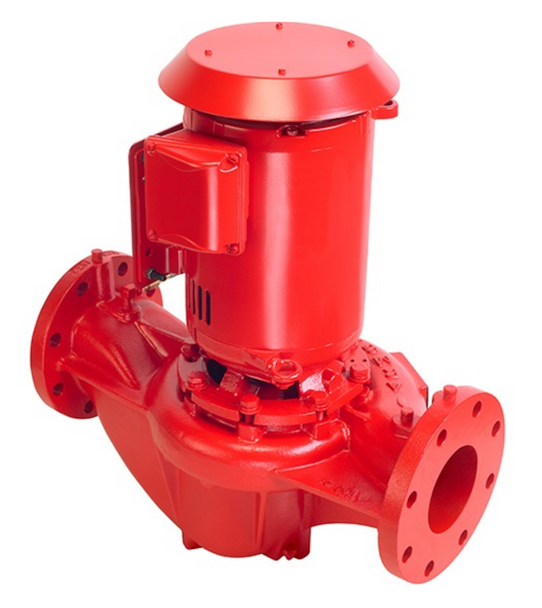

Armstrong 4380 7.5HP Close Coupled Vertical In-Line Pump 3x3x6
$3,182.00
In Stock
Armstrong 4380 7.5HP Close Coupled Vertical In-Line Pump 3x3x6 Technical Specs
| Brand | Armstrong Fluid Technology |
| Model Number | 4380-3x3x6 |
| Country of Origin | Canada |
| Warranty | 1 Year |
| Connection Type | ANSI Flanged (In-Line) |
| Connection Size | 3" x 3" |
| Shaft Size | 1.25" Stainless Steel |
| Impeller Size | 6.0" Nominal |
| Working Pressure | 175 PSI (12 Bar) |
| Pump Construction | Cast Iron Volute |
| Mounting Type | Vertical In-Line (VIL) |
| Frame Size | 213JM Frame |
| Pump Application | Commercial HVAC Circulation |
| Pump Horsepower | 7.5 HP |
| Motor Phase | Single Phase |
| Motor RPM | 1750 RPM |
| Hertz | 60 Hz |
| Voltage | 115V |
| Max Temperature | 121 °C (250 °F) |
