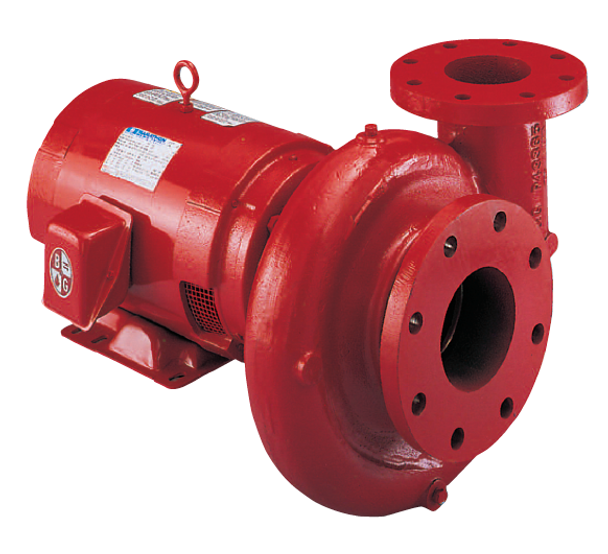

Bell & Gossett Series 1531 Model 1-1/4BC Pump 7-1/2 HP 3500 RPM Motor
$4,586.00
In Stock
Bell & Gossett 1-1/4BC Series 1531 Technical Specs
| Brand | Bell & Gossett (Xylem) |
| Model & MPN | 1-1/4BC (ZE41367857) |
| Country of Origin | USA |
| Warranty | 1 Year |
| Connection Type | ANSI Flanged (End Suction) |
| Connection Size | 1.5" Suction x 1.25" Discharge |
| Shaft Size | 0.875" (With Stainless Steel Sleeve) |
| Impeller Size | 6.5" Nominal (Bronze) |
| Working Pressure | 175 PSI (12 Bar) |
| Pump Construction | Cast Iron Body; Bronze-Fitted; Internally Flushed Seal |
| Mounting Type | Close-Coupled (Footless Volute) |
| Frame Size | 184JM Frame |
| Pump Application | Chilled Water Loop; Space-Saving Mechanical Rooms |
| Pump Horsepower | 7.5 HP |
| Motor Phase | 3 Phase |
| Motor RPM | 3500 RPM |
| Hertz | 60 Hz |
| Voltage | 230/460V |
| Max Temperature | 121 °C (250 °F) |
