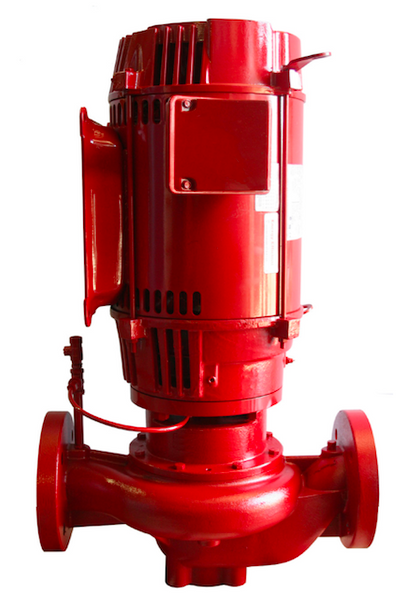

Bell & Gossett Series e-80 1HP Pump Model 1.5 x 1.5 x 7C
$3,604.00
In Stock
Bell & Gossett Series e-80 1.5x1.5x7C 1HP Technical Specs
| Brand | Bell & Gossett (Xylem) |
| Model Number | 1.5 x 1.5 x 7C e-80 (e-80-4) |
| Country of Origin | USA |
| Warranty | 1 Year |
| Connection Type | ANSI Flanged (In-Line) |
| Connection Size | 1.5" Suction x 1.5" Discharge |
| Shaft Size | 1.25" (Stainless Steel) |
| Impeller Size | 7.0" Nominal (Bronze) |
| Working Pressure | 175 PSI (12 Bar) |
| Pump Construction | Cast Iron Volute; Vertical In-Line Design |
| Mounting Type | Vertical In-Line (VIL) |
| Frame Size | 143JM Frame |
| Pump Application | Commercial HVAC Chilled Water; Heating Systems |
| Pump Horsepower | 1 HP |
| Motor Phase | 3 Phase |
| Motor RPM | 1750 RPM |
| Hertz | 60 Hz |
| Voltage | 230/460V |
| Max Temperature | 121 °C (250 °F) |
