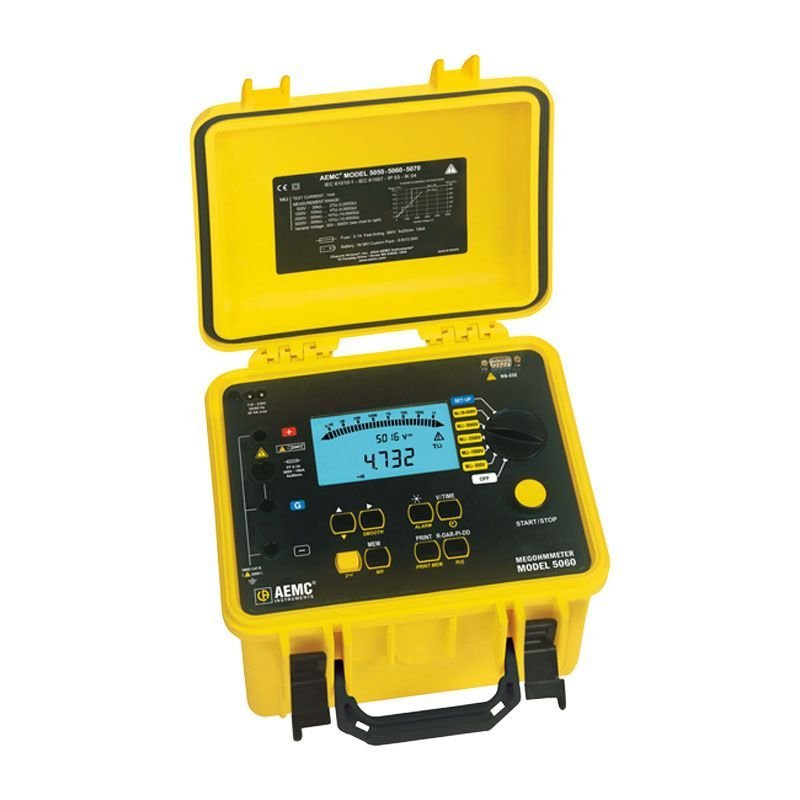

AEMC 5060 Megohmmeter 10 Tohms 5000V w/ DataView – 2130.21
$1,555.00
In Stock
AEMC 5060 Megohmmeter Specs
| Brand | AEMC (Chauvin Arnoux) |
| Model Number / SKU | 2130.21.00 (5060) |
| Country of Origin | France |
| Instrument Type | Digital/Analog True Megohmmeter |
| Selectable Test Voltages | 500V, 1000V, 2500V, 5000V (Programmable 40-5100V) |
| Max Insulation Resistance Range | Up to 10 TΩ |
| Basic Resistance Accuracy | ± 15% rdg + 10 ct (High Range) |
| Short-Circuit / Charge Current | > 3 mA |
| Diagnostic Test Functions | PI, DAR, DD, Step Voltage |
| Guard Terminal Included | Yes |
| Voltage Measurement Range | 1 to 4000V AC/DC |
| Capacitance Measurement | 0.005 to 49.99 µF |
| Safety Category Rating | CAT III 600 V |
| Display Type | Large dual-display with electroluminescent backlight |
| Data Logging & Memory | 128 kB Memory (1500 readings) / RS-232 / DataView |
| IP Rating & Enclosure | IP53 (Dual-wall weatherproof field case) |
| Battery Type & Life | Rechargeable NiMH |
| Standard Warranty | 1 Year |
| Application | Advanced insulation analysis, timed resistance measurements, and predictive maintenance |
