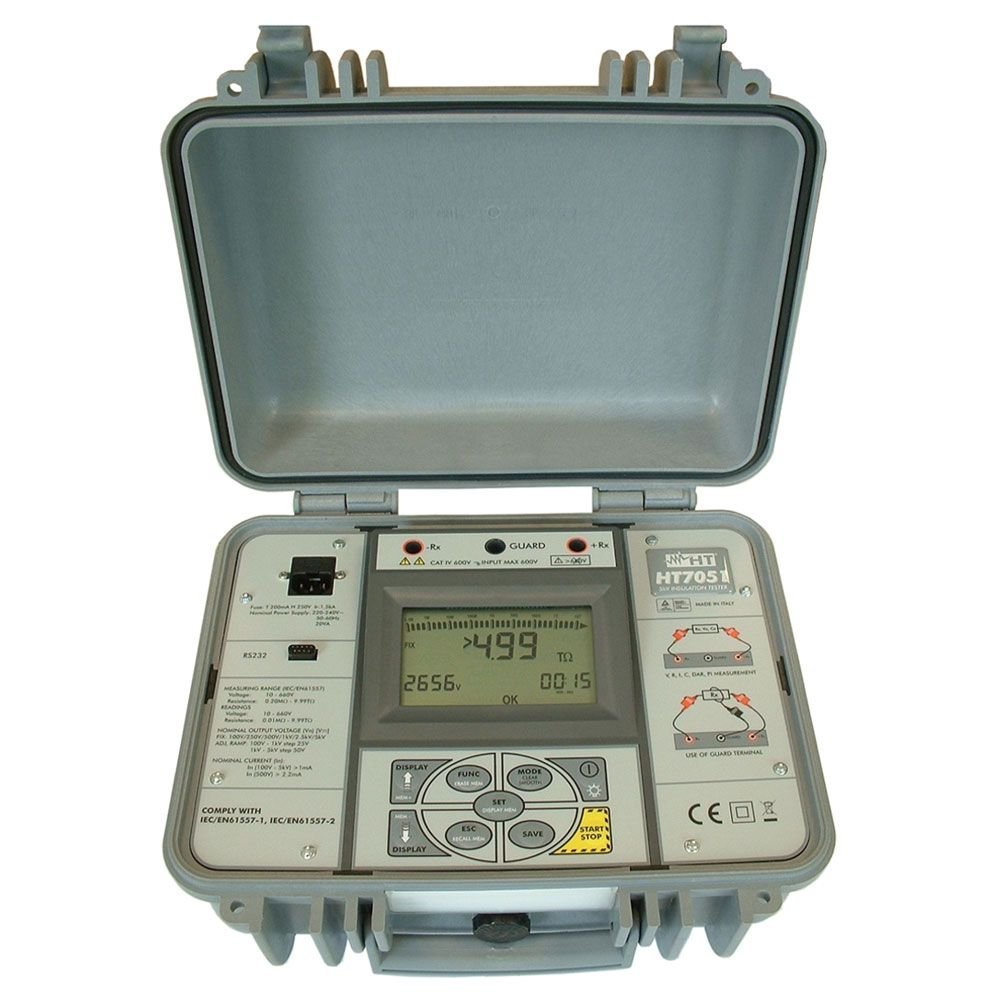

HT HT7051 Programmable Digital 5kV Insulation – HV007051
$1,634.00
In Stock
HT HT7051 Programmable Digital 5kV Insulation Specs
| Brand | HT Instruments |
| Model Number / SKU | HV007051 (HT7051) |
| Country of Origin | Italy |
| Instrument Type | Programmable 5kV Diagnostic Insulation Tester |
| Selectable Test Voltages | 100V, 250V, 500V, 1kV, 2.5kV, 5kV |
| Max Insulation Resistance Range | Up to 1.99 TΩ |
| Basic Resistance Accuracy | ± 5% rdg + 3 dgt |
| Short-Circuit / Charge Current | Max 3 mA |
| Diagnostic Test Functions | PI, DAR, Leakage Current |
| Guard Terminal Included | Yes |
| Voltage Measurement Range | 0 to 600V AC/DC |
| Capacitance Measurement | 1 nF to 49.9 µF |
| Safety Category Rating | CAT IV 600V |
| Display Type | Backlight LCD with three simultaneous readings |
| Data Logging & Memory | 700 tests memory / RS232 opto-isolated |
| IP Rating & Enclosure | IP53 (Closed case) |
| Battery Type & Life | Internal NiMH rechargeable battery / >1000 Tests |
| Standard Warranty | 2 Years |
| Application | Preventive maintenance of motors, transformers, and industrial electrical cables |
