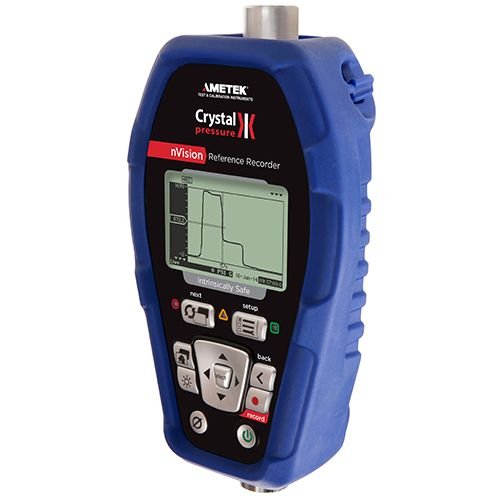

Crystal Engineering NV-4AA-30PSI-30PSI-BARO nVision Recorder 30 PSI w/ BARO
Crystal Engineering NV-4AA-30PSI-30PSI-BARO simplifies high-precision low-pressure monitoring through dual 30 PSI sensors and a barometric reference, delivering metrology-grade 0.025% accuracy to effectively replace mechanical deadweight testers.
- Metrology Range: Dual 30 PSI (2 bar) Modules + BARO Module
- Metrology Precision: 0.025% of Reading Accuracy
- Data Management: 500,000 Data Points (10 readings/sec)
- Thermal Logic: Compensated from -20°C to 50°C
- Protection Rating: IP67 Waterproof (3ft / 1m Depth)
Compliance: Includes A2LA Accredited Calibration Certificate.
$3,136.00
In Stock
| Brand | Crystal Engineering (AMETEK) |
| MPN | NV-4AA-30PSI-30PSI-BARO |
| Model SKU | nVision Reference Recorder (Dual 30 PSI Sensors w/ BARO) |
| Pressure Range | Dual 30 PSI (2 bar) modules; Includes Barometric Reference |
| Accuracy | 0.025% of Reading Accuracy; Replaces deadweight testers |
| Datalogging | 500,000 data points; 10 readings per second from 2 modules |
| Compensation | Temperature compensated from -20°C to 50°C (-4°F to 122°F) |
| Protection | IP67 Rated (Waterproof up to 1 meter / 3 feet) |
| Interface | Backlit graphical LCD; No PC required for live data analysis |
| Fittings | Replaceable CPF (Crystal Pressure Fittings) system |
| Warranty | 1-Year Manufacturer Warranty |
| Each Unit Includes | nVision Recorder, Dual 30 PSI Modules, BARO Module, CPF Adapter, and A2LA Calibration Certificate |
