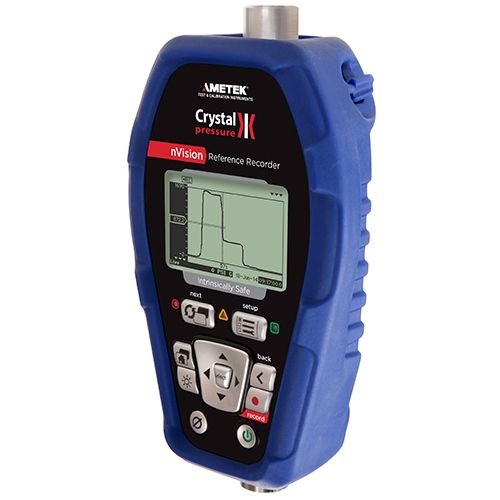

Crystal Engineering NV-4AA-3KPSI-10KPSI-B nVision Recorder 3K PSI / 10K PSI
Crystal Engineering NV-4AA-3KPSI-10KPSI-B resolves field verification bottlenecks by integrating switch testing and 24V loop power into a dual 3,000/10,000 PSI platform shielded by a high-impact protective rubber boot.
- Display Spec: Real-time graphical LCD
- Pressure Precision: 0.025% of reading accuracy
- System Interface: 24V loop power logging
- Thermal Range: -20C to 50C compensated
- Field Usage: 700 bar manifold testing
Compliance: IP67 rated A2LA certified.
$2,621.00
In Stock
| Brand | Crystal Engineering (AMETEK) |
| MPN | NV-4AA-3KPSI-10KPSI-B |
| Model SKU | nVision Dual Sensor Recorder w/ Boot (3K / 10K PSI) |
| Pressure Range | 3,000 PSI (200 bar) and 10,000 PSI (700 bar) configuration |
| Accuracy | 0.025% of Reading; Full Temperature Compensation (-20 to 50°C) |
| Resolution | 3,000 PSI: 0.1 PSI; 10,000 PSI: 1 PSI |
| Specialized Test | Includes Switch Test, 24V Loop Power, and Temperature logging |
| Hardware Port | Replaceable CPF (Crystal Pressure Fittings) standard |
| Protection | Rugged field case with B-series protective rubber boot; IP67 rated |
| Warranty | 1-Year Manufacturer Warranty |
| Each Unit Includes | nVision Mainframe, 3K PSI Module, 10K PSI Module, Boot, and A2LA Cert |
