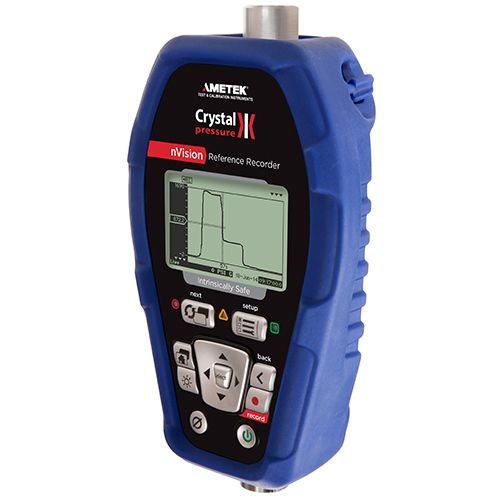

Crystal Engineering NV-4AA-3KPSI-3KPSI-B nVision Dual Sensor 3K PSI Recorder
Crystal Engineering NV-4AA-3KPSI-3KPSI-B eliminates measurement drift in manifold audits by providing redundant 3,000 PSI modules and 10 Hz sampling within a submersible, high-impact field housing.
- Display Spec: 10 Hz graphical trending LCD
- Precision Metric: 0.025% of reading accuracy
- Digital Interface: 500,000 point memory log
- Power Range: -20 to 50C compensation
- Field Usage: 200 bar manifold testing
Compliance: IP67 rated A2LA certified.
$2,434.00
In Stock
| Brand | Crystal Engineering (AMETEK) |
| MPN | NV-4AA-3KPSI-3KPSI-B |
| Model SKU | nVision Dual Sensor 3,000 PSI Recorder w/ Boot |
| Pressure Range | Redundant Dual 3,000 PSI (200 bar) modules for manifold audits |
| Accuracy Note | 0.025% of Reading; accuracy remains constant across temperature effects |
| Interface | Backlit graphical LCD showing real-time trending (No PC required) |
| Sampling Speed | 10 Hz high-speed data capture rate from dual active sensors |
| Ruggedness | Hazardous field-use ready; Submersible IP67 housing w/ Boot |
| Compensation | Automatic temperature compensation from -20 to 50°C maintained |
| Warranty | 1-Year Manufacturer Warranty |
| Each Unit Includes | nVision Unit, Dual 3,000 PSI Modules, Protective Boot, and A2LA Cert |
