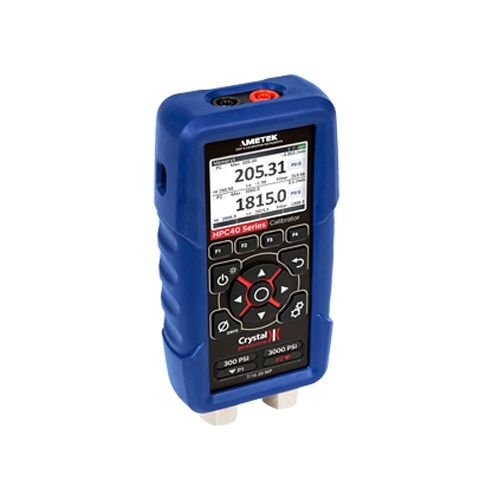

Crystal Engineering HPC41-300PSI HPC40 Pressure Calibrator 300 psi
$1,094.00
In Stock
Crystal HPC41 Pressure Calibrator (300 PSI) Metrology Specs
| Brand | Crystal Engineering (AMETEK) |
| Model SKU | HPC41-300PSI |
| Country of Origin | United States |
| Specific Operating Range | 0 to 300 PSI (Gauge/Absolute/Differential) |
| Accuracy Class | ±0.035% of Reading (Active Temperature Compensation) |
| Sensor & Material | "Non-Menu" Interface; Stainless Steel CPF Fitting System |
| Temperature Compensation | Fully Compensated from -20 to 50°C (-4 to 122°F) |
| Data Logging Capacity | Store & Recall Screens; Mini-USB Data Transfer |
| Display & Resolution | High-Resolution Color Display with Dual-Pressure View |
| Interface & Port Type | CPF (Crystal Pressure Fitting) Male to 1/4" NPT |
| Electrical Metrology | Measure & Source mA with 24 VDC Internal Power; "True Ohm" RTD Technology |
| Power & Battery Life | 4x AA Batteries; Optional Rechargeable Kit |
| Safety & Protection | Skydrol Resistant Protective Boot; IP67 equivalent durability |
| Compliance | NIST Traceable with data at 5 temperatures; ISO/IEC 17025 |
| Warranty Period | 1-Year Manufacturer Warranty |
| Industrial Application | Combined pressure and mA loop calibration for aviation and oil & gas. |
