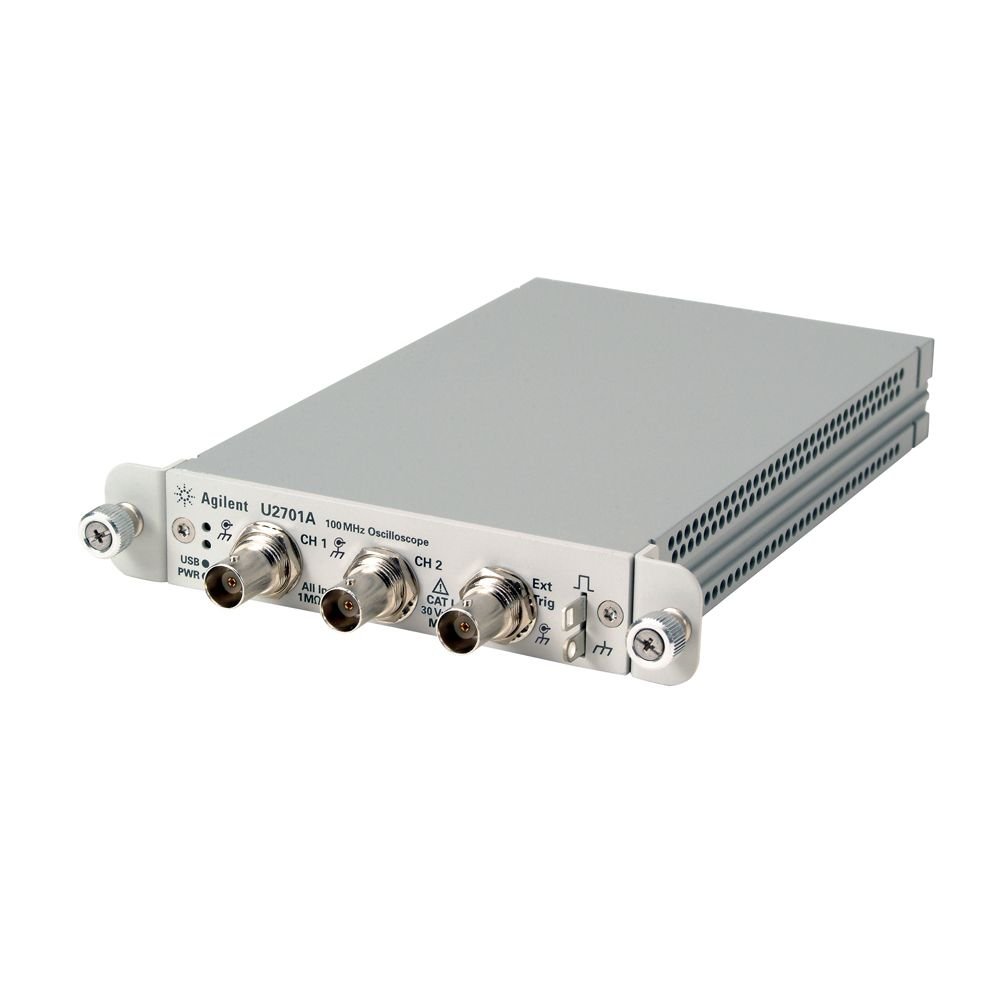

Keysight U2701A USB Modular Oscilloscope 100MHz
Probe Probe resolves common instrumentation bottlenecks during localized oscilloscope testing configurations sustaining long-term system repeatability during rigorous benchmarking schedules. This architecture guarantees professional benchmarking repeatability.
- Keysight U2701A Brand & Full Model SKU.
- 100 MHz Bandwidth & Rise Time.
- 2 Analog Channels Analog & Digital Channels.
- 1 GSa/s/500 MSa/s Max Real-Time Sample Rate.
- PC-Dependent Waveform Update system Rate.
$1,100.00
In Stock
Keysight U2701A Metrology Specs
| Brand & Full Model SKU | Keysight U2701A (USB Modular Oscilloscope) |
|---|---|
| Country of Origin | Malaysia |
| Bandwidth & Rise Time | 100 MHz | Tr < 3.5 ns |
| Analog & Digital Channels | 2 Analog Channels |
| Max Real-Time Sample Rate | 1 GSa/s (Single) / 500 MSa/s (Dual) |
| Waveform Update Rate | PC-Dependent (Software Accelerated) |
| Max Memory Depth | 32 Mpts (Large Buffer for USB Streaming) |
| Vertical Resolution & High-Res Mode | 8-bit Native Resolution |
| Input Sensitivity & Noise Floor | 2 mV/div to 5 V/div | Optimized for USB Power Isolation |
| Timebase Range & Jitter | 1 ns/div to 50 s/div | < 200 ps rms |
| Hardware-Based Triggers | Edge, Pulse Width, Video |
| Protocol Analysis & Decoding | Supported via AMM (Agilent Measurement Manager) Software |
| Spectral Analysis | FFT and Math Functions via PC-link |
| Display & UI Architecture | PC-Based Virtual GUI (Full HD Support via Laptop/PC) |
| Connectivity & Interface | USB 2.0 Hi-Speed (TMC Class) / LXI (when in Chassis) |
| Multi-Instrument Integration | Compatible with U2700A Series Modular Chassis |
| Standard Warranty & Service Interval | 3 Years | 12 Months Recalibration |
| Metrological Compliance | ISO/IEC 17025 Standard Traceability |
| Industrial Application | Automated test equipment (ATE) systems, high-density educational labs, and compact portable R&D validation setups. |
