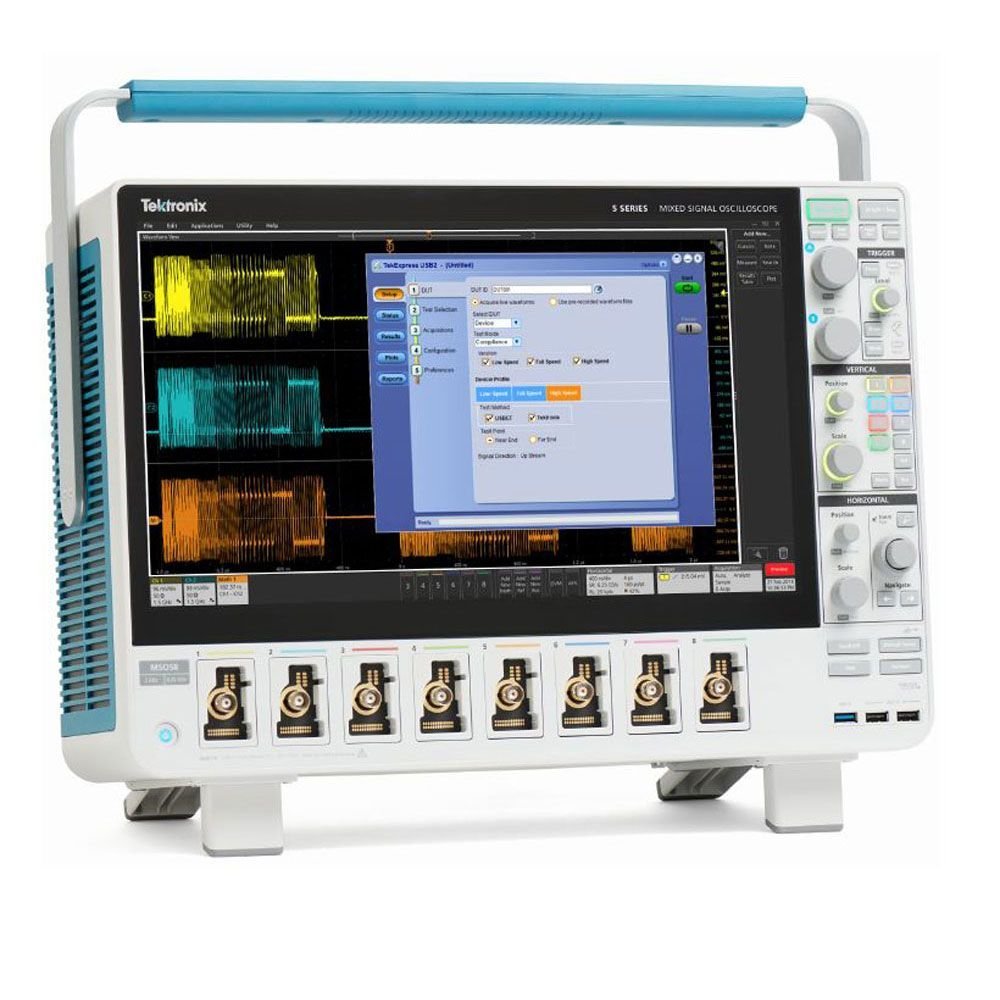

Tektronix 5-CMUSB2 USB 2.0 Compliance Test Solution
Tektronix Series streamlines technical verification parameters within specialized serial analysis workflows preserving multi-frequency signal integrity for down-stream diagnostic nodes. This architecture guarantees professional benchmarking repeatability.
- 480 Mbps High Speed Bandwidth & Rise.
- Differential D+/D- Measurements Analog & Digital.
- Recommended 2 GSa/s minimum for HS Eye.
- Automated Eye-diagram plot generation Waveform Update Rate.
- Sufficient for EOP and Suspend audits Max.
$1,995.00
In Stock
Tektronix 5-CMUSB2 Metrology Specs
| Brand & Full Model SKU | Tektronix 5-CMUSB2 (USB 2.0 Compliance) |
|---|---|
| Country of Origin | USA |
| Bandwidth & Rise Time | 480 Mbps High Speed (HS) | 12 Mbps Full Speed (FS) |
| Analog & Digital Channels | Differential D+/D- Measurements |
| Max Real-Time Sample Rate | Recommended 2 GSa/s minimum for HS Eye Diagrams |
| Waveform Update Rate | Automated Eye-diagram plot generation |
| Max Memory Depth | Sufficient for EOP (End of Packet) and Suspend audits |
| Vertical Resolution & High-Res Mode | 12-bit resolution for precise Monotonicity checks |
| Input Sensitivity & Noise Floor | Low-noise floor required for Signal Quality Index |
| Timebase Range & Jitter | Sync Jitter and Crossover Voltage monitoring |
| Hardware-Based Triggers | USB 2.0 HS/FS Protocol Triggering |
| Protocol Analysis & Decoding | In-depth Packet Decoding and enumeration monitoring |
| Spectral Analysis | N/A (Primarily Time-domain Eye Diagram) |
| Display & UI Architecture | TekExpress USB 2.0 Software Dashboard |
| Connectivity & Interface | Requires USB-IF Fixtures (TDSUSBF) |
| Multi-Instrument Integration | Integrated with 5-Series MSO advanced math functions |
| Standard Warranty & Service Interval | 90 Days Media Warranty (Software License) |
| Metrological Compliance | USB-IF v2.0 Specification Compliance |
| Industrial Application | Consumer electronics I/O testing, semiconductor USB PHY characterization, and medical device connectivity validation. |
