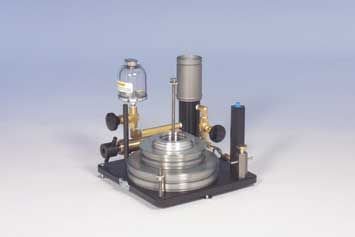

Ametek M&G HL-15000N Hydraulic Deadweight Tester 500 to 15000 kPa
Ametek M&G HL-15000N optimizes kPa-rated transmitter verification via adjustable local gravity settings and tungsten carbide PCUs, delivering ±0.1% accuracy for high signal integrity audits.
- Display Spec: Manual mass-balance reference (100 kPa steps)
- Precision Metric: ±0.1% of Reading primary standard class
- Digital Interface: 1/4″ NPT Female hydraulic oil port
- Power Range: Manual hydraulic (500 to 15,000 kPa range)
- Field Usage: Verification of kPa-rated pressure transmitters
Compliance: NIST Traceable and ISO/IEC 17025 Accredited.
$2,621.00
In Stock
Ametek M&G HL-15000N Hydraulic Deadweight Tester Technical Specs
| Brand | AMETEK Mansfield & Green |
| Model SKU | HL-15000N (kPa Range) |
| Country of Origin | United States |
| Specific Operating Range | 500 to 15,000 kPa |
| Accuracy Class | ±0.1% of Reading |
| Resolution | Mass-dependent (100 kPa increments) |
| Piston-Cylinder / Sensor Material | Tungsten Carbide / Stainless Steel |
| Temperature Compensation | Mechanical Thermal Expansion Correction |
| Media Compatibility | Hydraulic Oil |
| Gravity Correction | Adjustable to local gravity requirements |
| Data Logging Capacity | N/A (Primary Mass Balance) |
| Interface & Port Type | 1/4" NPT (Female) |
| Power & Battery Life | Manual Hydraulic Operation |
| Safety & Protection | Piston travel limit stop; 120% Overpressure protection |
| Compliance | NIST Traceable, ISO/IEC 17025 |
| Warranty | 1-Year Standard |
| Industrial Application | Verification of kPa-rated pressure transmitters with high Signal Integrity. |
