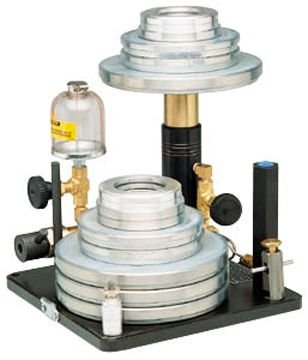

Ametek M&G HL-2/C Hydraulic Deadweight Tester 200 psi
Ametek M&G HL-2/C resolves low-pressure primary standard validation drift through stainless steel pistons and mechanical overhung weight carriers, providing ±0.1% accuracy for 200 psi audits.
- Display Spec: Manual mass-dependent primary analog interface
- Precision Metric: ±0.1% of Reading accuracy class
- Digital Interface: 1/4″ NPT Female hydraulic port
- Power Range: Manual mechanical (5 to 200 psi)
- Field Usage: Low-pressure primary standard coefficient verification
Compliance: NIST Traceable and ANSI B40.100.
$2,326.00
In Stock
Ametek M&G HL-2/C Hydraulic Deadweight Tester Technical Specs
| Brand | AMETEK Mansfield & Green |
| Model SKU | HL-2/C (Low Pressure) |
| Country of Origin | United States |
| Specific Operating Range | 5 to 200 psi |
| Accuracy Class | ±0.1% of Reading |
| Resolution | Mass-dependent (Standard Increment) |
| Piston-Cylinder / Sensor Material | Stainless Steel Piston / Hardened Alloy Cylinder |
| Temperature Compensation | Mechanical Stability; Calibrated at 20°C |
| Media Compatibility | AAA Hydraulic Oil |
| Gravity Correction | Standard Gravity (9.80665 m/s²) |
| Data Logging Capacity | N/A (Primary Analog Standard) |
| Interface & Port Type | 1/4" NPT (Female) |
| Power & Battery Life | Manual (No Power Required) |
| Safety & Protection | Mechanical Overhung Weight Carrier; 120% FS Limit |
| Compliance | NIST Traceable, ANSI B40.100 |
| Warranty | 1-Year Standard |
| Industrial Application | Low-pressure primary standard for Characterized Individual Coefficients verification. |
