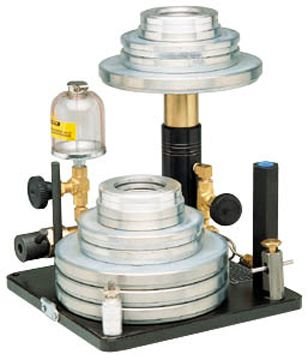

Ametek M&G HL-30-1/C Hydraulic Deadweight Tester 50 to 3000 PSI
Ametek M&G HL-30-1/C optimizes field gauge mass-calibration through a dual-range stainless steel piston system and local gravity customization to ensure ±0.1% accuracy for reduction of measurement uncertainty.
- Display Spec: Manual mass-dependent reference (1 psi increments)
- Precision Metric: ±0.1% of Reading primary standard
- Digital Interface: 1/4″ NPT Female hydraulic port
- Power Range: Manual hydraulic generation (50 to 3,000 psi)
- Field Usage: Primary mass-calibration for reducing field gauge uncertainty
Compliance: NIST Traceable, ISO/IEC 17025, and ANSI Z540.
$2,815.00
In Stock
Ametek M&G HL-30-1/C Hydraulic Deadweight Tester Technical Specs
| Brand | AMETEK Mansfield & Green |
| Model SKU | HL-30-1/C (Dual Range) |
| Country of Origin | United States |
| Specific Operating Range | 50 to 3,000 psi (200 bar) |
| Accuracy Class | ±0.1% of Reading |
| Resolution | Mass-dependent (1 psi increments) |
| Piston-Cylinder / Sensor Material | Stainless Steel Piston; Brass Cylinder |
| Temperature Compensation | Mechanical; Calibration at 20°C (68°F) |
| Media Compatibility | AAA Hydraulic Oil / Distilled Water (Option) |
| Gravity Correction | Standard Gravity (9.80665 m/s²) or local G-customized |
| Data Logging Capacity | N/A (Analog Primary Standard) |
| Interface & Port Type | 1/4" NPT (Female) |
| Power & Battery Life | Manual (No Power Required) |
| Safety & Protection | Mechanical Overhung Weight Carrier; 120% FS Limit |
| Compliance | NIST Traceable, ISO/IEC 17025, ANSI Z540 |
| Warranty | 1-Year Standard |
| Industrial Application | Primary mass-calibration for field gauges to reduce Measurement Uncertainty. |
