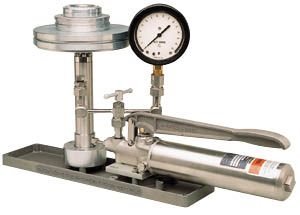

Ametek M&G RQD-700/0.1% Hydraulic Deadweight Tester 700 kg/cm2
Ametek M&G TQD-700M (RQD-700) maximizes metric signal integrity through matched stainless steel and carbide piston sets, delivering ±0.1% accuracy for robust high-pressure hydraulic sensor validation.
- Display Spec: Safety burst disc overpressure interface
- Precision Metric: ±0.1% of Reading signal integrity focused
- Digital Interface: External data logging via PressCal
- Power Range: 10 to 700 kg/cm² metric range
- Field Usage: Robust metric high-pressure signal validation
Compliance: NIST Traceable, ISO/IEC 17025, and ANSI Z540-1.
$5,753.00
In Stock
Ametek M&G RQD-700/0.1% (TQD-700M) Hydraulic DWT Specs
| Brand | Ametek M&G |
| Model SKU | TQD-700M (RQD-700 Series) |
| Country of Origin | United States |
| Specific Operating Range | 10 to 700 kg/cm² |
| Accuracy Class | ±0.1% of Reading (Signal Integrity Focused) |
| Piston-Cylinder / Sensor Material | Matched Piston-Cylinder Set (Stainless Steel/Carbide) |
| Temperature Compensation | Thermal Stability Characterized for Ae |
| Gravity Correction | Standard Gravity Calibration (9.80665 m/s²) |
| Data Logging Capacity | External Data Logging Integration via PressCal |
| Interface & Port Type | 1/4" NPT Female |
| Power & Battery Life | Manual Mechanical Hand Control |
| Safety & Protection | Safety Burst Discs / Overpressure protection at 120% FS |
| Compliance | NIST Traceable, ISO/IEC 17025, ANSI Z540-1 |
| Warranty | 1 Year Manufacturer Warranty |
| Industrial Application | Robust hydraulic standard for metric high-pressure signal integrity validation. |
