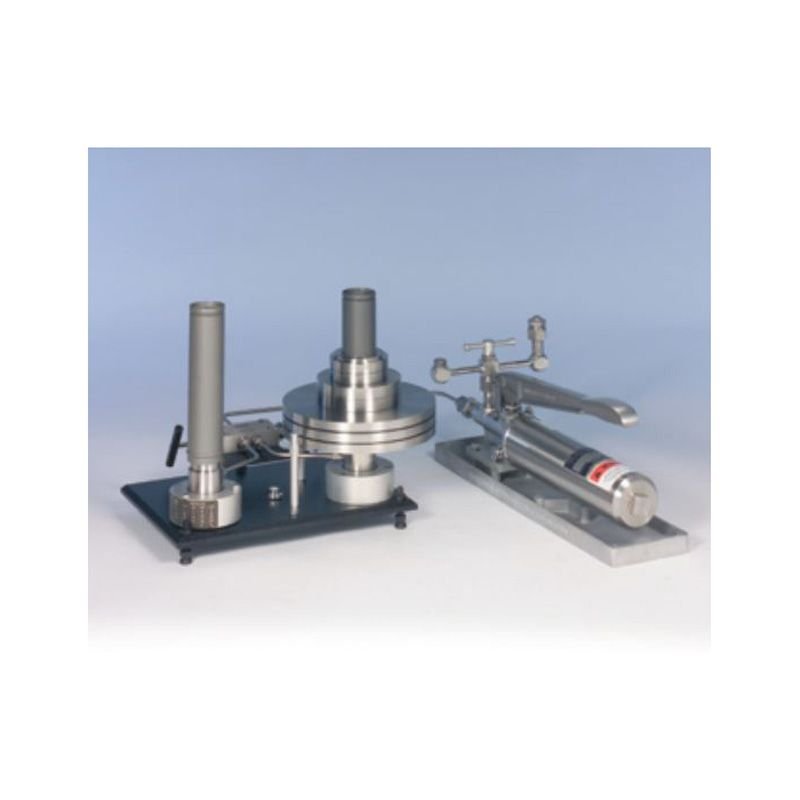

Ametek M&G TQD-1000B Hydraulic Deadweight Tester 100 bar
Ametek M&G TQD-1000B resolves medium pressure hydraulic validation hurdles via a dual-piston range standard and safety burst discs, providing 0.1% accuracy for comprehensive industrial signal integrity audits.
- Display Spec: Matched stainless steel dual-piston assembly
- Precision Metric: 0.1% of reading accuracy class
- Digital Interface: External PressCal data logging integration
- Power Range: 10 to 100 bar hydraulic range
- Field Usage: Medium pressure hydraulic signal integrity validation
Compliance: NIST Traceable and ISO/IEC 17025 Ready.
$7,020.00
In Stock
Ametek M&G TQD-1000B Hydraulic Deadweight Tester Technical Specs
| Brand | Ametek M&G |
| Model SKU | TQD-1000B |
| Country of Origin | United States |
| Specific Operating Range | 10 to 100 bar |
| Accuracy Class | 0.1% of Reading Accuracy Class |
| Piston-Cylinder / Sensor Material | Matched Piston-Cylinder Assembly (Stainless Steel) |
| Temperature Compensation | Individually Characterized Thermal Stability |
| Gravity Correction | Standard Gravity Calibration (9.80665 m/s²) |
| Data Logging Capacity | External Data Logging Integration via PressCal |
| Interface & Port Type | 1/4" NPT Female |
| Power & Battery Life | Manual Mechanical Hand Control |
| Safety & Protection | Safety Burst Discs / Overpressure protection at 120% FS |
| Compliance | NIST Traceable, ISO/IEC 17025 Ready |
| Warranty | 1 Year Manufacturer Warranty |
| Industrial Application | Dual-piston range standard for medium pressure hydraulic signal integrity validation. |
