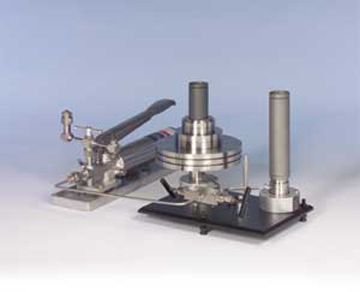

Ametek M&G TQD-40000N Hydraulic Deadweight Tester 100-4000kPa 1K-40000kPa
Ametek M&G TQD-40000N resolves metric high-pressure gauge validation hurdles up to 40 MPa by using a dual-range hardened stainless steel/carbide assembly to deliver 0.1% primary standard accuracy.
- Display Spec: Manual mass-balance reference with safety carriers
- Precision Metric: 0.1% of Reading primary standard class
- Digital Interface: 1/4″ NPT Female (Hydraulic Oil Media)
- Power Range: Manual hydraulic hand pump (Up to 40,000 kPa)
- Field Usage: Metric primary standard high-pressure hydraulic validation
Compliance: NIST Traceable Calibration Certificate Included.
$4,723.00
In Stock
Ametek M&G TQD-40000N Hydraulic Deadweight Tester Specs
| Brand | Ametek M&G |
| Model SKU | TQD-40000N |
| Country of Origin | United States |
| Specific Operating Range | 100 to 40,000 kPa (Dual Range) |
| Accuracy Class | 0.1% of Reading (Primary Standard) |
| Piston-Cylinder / Sensor Material | Hardened Stainless Steel / Tungsten Carbide |
| Temperature Compensation | Thermal Expansion Coefficients Characterized for Ae |
| Gravity Correction | Factory Calibrated to 9.80665 m/s² (Standard) |
| Data Logging Capacity | N/A (Manual Mass-Balance Reference) |
| Interface & Port Type | 1/4" NPT Female (Hydraulic Oil Media) |
| Power & Battery Life | Manual Hydraulic Hand Pump |
| Safety & Protection | Integrated Relief Valve / Safety Mass Carriers |
| Compliance | NIST Traceable Calibration Certificate Included |
| Warranty | 1 Year Manufacturer Warranty |
| Industrial Application | Metric primary standard for high-pressure hydraulic gauge validation up to 40 MPa. |
