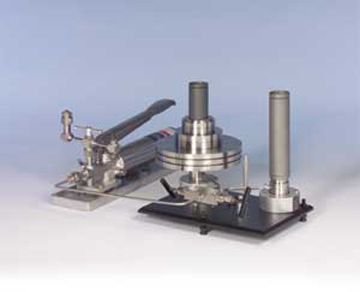

Ametek M&G TQD-40000N/C Hydraulic Deadweight Tester 100 to 4000 kPa
Ametek M&G TQD-40000N/C resolves metric high-pressure signal integrity through matched stainless steel PCU sets for robust 40,000 kPa hydraulic audits.
- Display Spec: Overpressure flow interlock safety housing
- Precision Metric: ±0.1% of Reading uncertainty optimized
- Digital Interface: Standard NIST gravity traceable calibration
- Power Range: 100 to 40,000 kPa metric hydraulic range
- Field Usage: Robust metric high-pressure signal integrity validation
Compliance: ISO/IEC 17025 and NIST Traceable Calibration.
$5,335.00
In Stock
Ametek M&G TQD-40000N/C Hydraulic Deadweight Tester Specs
| Brand | Ametek M&G |
| Model SKU | TQD-40000N/C |
| Country of Origin | United States |
| Specific Operating Range | 100 to 40,000 kPa |
| Accuracy Class | ±0.1% of Reading (Measurement Uncertainty Optimized) |
| Piston-Cylinder / Sensor Material | Matched Stainless Steel Piston-Cylinder Set |
| Temperature Compensation | Characterized Individual Coefficients for Ae |
| Gravity Correction | Standard NIST Gravity Calibration |
| Data Logging Capacity | N/A (Mechanical Mass-Balance Reference) |
| Interface & Port Type | 1/4" NPT Female |
| Power & Battery Life | Manual Hydraulic Generation |
| Safety & Protection | Overpressure Flow Interlock / Safety Housing |
| Compliance | ISO/IEC 17025, NIST Traceable Calibration |
| Warranty | 1 Year Manufacturer Warranty |
| Industrial Application | Robust hydraulic standard for metric high-pressure signal integrity validation. |
