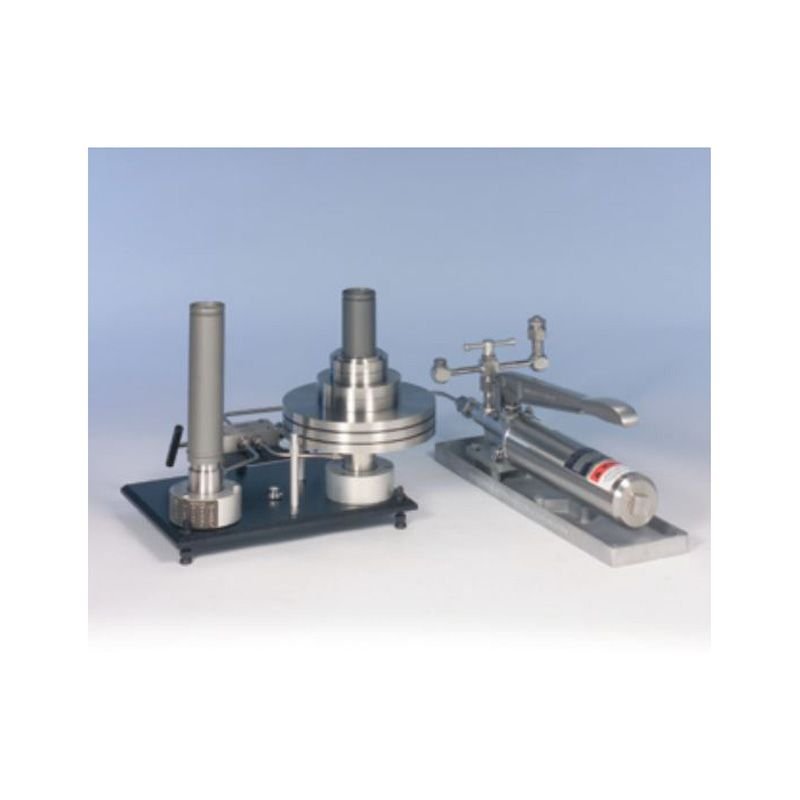

Ametek M&G TSQ-700B-1/C Hydraulic Deadweight Tester 10-700 bar
Ametek M&G TSQ-700B-1/C resolves hydraulic gauge verification uncertainty through a tungsten carbide assembly and internal overpressure relief, delivering 0.1% accuracy for reliable industrial metrology standards.
- Display Spec: Internal overpressure relief valve interface
- Precision Metric: 0.1% of Reading traceable accuracy
- Digital Interface: NIST traceable calibration certificate included
- Power Range: 10 to 700 bar hydraulic range
- Field Usage: Reliable hydraulic gauge and transducer audits
Compliance: NIST Traceable Calibration Certificate Included.
$6,084.00
In Stock
Ametek M&G TSQ-700B-1/C Hydraulic Deadweight Tester Specs
| Brand | Ametek M&G |
| Model SKU | TSQ-700B-1/C |
| Country of Origin | United States |
| Specific Operating Range | 10 to 700 bar |
| Accuracy Class | 0.1% of Reading (Traceable Class) |
| Piston-Cylinder / Sensor Material | Hardened Stainless Steel / Tungsten Carbide Assembly |
| Temperature Compensation | Mechanical Equilibrium Stability |
| Gravity Correction | Calibrated to Local Gravity (9.80665 m/s² Standard) |
| Data Logging Capacity | N/A (Primary Mass-Standard System) |
| Interface & Port Type | 1/4" NPT Female (Hydraulic Oil Media) |
| Power & Battery Life | Manual Hydraulic Hand Pump |
| Safety & Protection | Internal Overpressure Relief Valve |
| Compliance | NIST Traceable Calibration Certificate Included |
| Warranty | 1 Year Manufacturer Warranty |
| Industrial Application | Reliable hydraulic standard for high-pressure gauge and transducer audits. |
