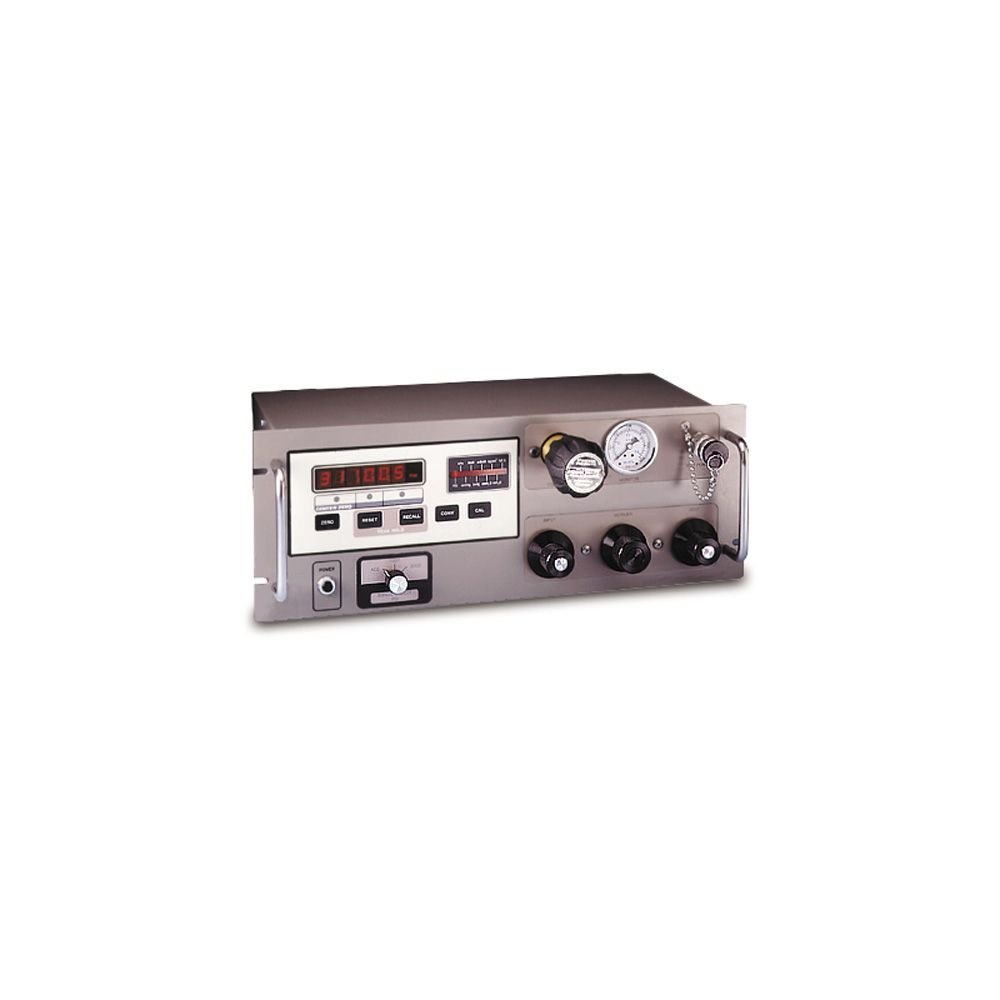

Condec UPS3110 Digital Pressure Standard / Calibrator
Condec UPS3110 eliminates manual calculation errors for analog gauge characterization via dual sensor architecture and programmable local gravity to provide ±0.05% FS laboratory accuracy.
- Display Spec: 6-digit digital display with 0.001% FS resolution
- Precision Metric: ±0.05% FS (Standard) to ±0.02% FS (Premium Option)
- Digital Interface: RS-232 and IEEE-488 (GPIB) for LabVIEW
- Power Range: Universal 115/230 VAC (0 to 10,000 psi)
- Field Usage: Lab standard for characterizing analog gauge coefficients
Compliance: NIST Traceable, ISO/IEC 17025, and MIL-STD-45662A.
$2,902.00
In Stock
Condec UPS3110 Digital Pressure Standard Hyper-Complete Specs
| Brand | Condec (Eaton) |
| Model SKU | UPS3110 Digital Pressure Standard |
| Country of Origin | United States |
| Specific Operating Range | 0-10,000 psi (Dual Sensor Architecture) |
| Accuracy Class | ±0.05% FS (Standard); ±0.02% FS (Premium Option) |
| Resolution | 0.001% of FS (Max 6 digits display) |
| Piston-Cylinder / Sensor Material | Silicon Piezoresistive / 316L Stainless Steel diaphragm |
| Temperature Compensation | 0°C to 50°C (Digital Thermal Mapping) |
| Media Compatibility | Clean dry air or non-corrosive gases/liquids |
| Gravity Correction | Programmable local gravity constant via front panel |
| Data Logging Capacity | RS-232, IEEE-488 (GPIB) for LabVIEW Integration |
| Interface & Port Type | 1/4" NPT Female; Quick-Disconnect fittings |
| Power & Battery Life | Universal 115/230 VAC 50/60Hz |
| Safety & Protection | Programmable electronic overpressure limit + Mechanical Relief Valve |
| Long-term Stability | ±0.025% FS per 6 months |
| Compliance | NIST Traceable, ISO/IEC 17025, MIL-STD-45662A |
| Warranty | 1-Year Manufacturer Warranty |
| Industrial Application | Laboratory standard for characterizing individual coefficients of analog gauges. |
