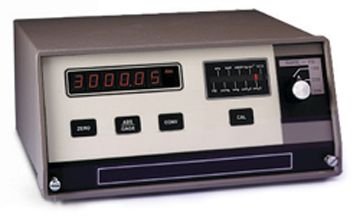

Condec UPS3110 w/ Digital Pressure Calibrator 500/250/100 Range, Rack Mnt.
Condec UPS3110ACC resolves multi-range pneumatic scale auditing gaps through a triple-range rack-mount configuration and digital thermal mapping to ensure ±0.05% FS accuracy per active range.
- Display Spec: 6-digit LCD with 0.001 psi resolution
- Precision Metric: ±0.05% FS per active range precision
- Digital Interface: RS-232 and IEEE-488 LabVIEW integration
- Power Range: 115/230 VAC (100, 250, and 500 psi ranges)
- Field Usage: Centralized lab standard for multi-scale pneumatic audits
Compliance: NIST Traceable, ISO/IEC 17025, and ANSI Z540.
$2,534.00
In Stock
Condec UPS3110 Multi-Range Rack Mount Calibrator Technical Specs
| Brand | Condec (Eaton) |
| Model SKU | UPS3110ACC (500/250/100 PSI) |
| Country of Origin | United States |
| Specific Operating Range | Multi-Range: 0-100, 0-250, 0-500 psi |
| Accuracy Class | ±0.05% FS per active range |
| Resolution | 0.001 psi; 6-digit LCD |
| Piston-Cylinder / Sensor Material | Silicon Piezoresistive / 316 SS Diaphragm |
| Temperature Compensation | 0°C to 50°C (Digital Mapping) |
| Media Compatibility | Clean Dry Air / Nitrogen |
| Gravity Correction | N/A (Internal Microprocessor) |
| Data Logging Capacity | RS-232 / IEEE-488 Data Logging Integration |
| Interface & Port Type | 1/4" NPT Female (Quick-Disconnect) |
| Power & Battery Life | 115/230 VAC 50/60Hz |
| Safety & Protection | Internal Relief Valves; Electronic Overpressure Cut-off |
| Compliance | NIST Traceable, ISO/IEC 17025, ANSI Z540 |
| Warranty | 1-Year Standard |
| Industrial Application | Centralized lab standard for Measurement Uncertainty auditing across multiple pneumatic scales. |
