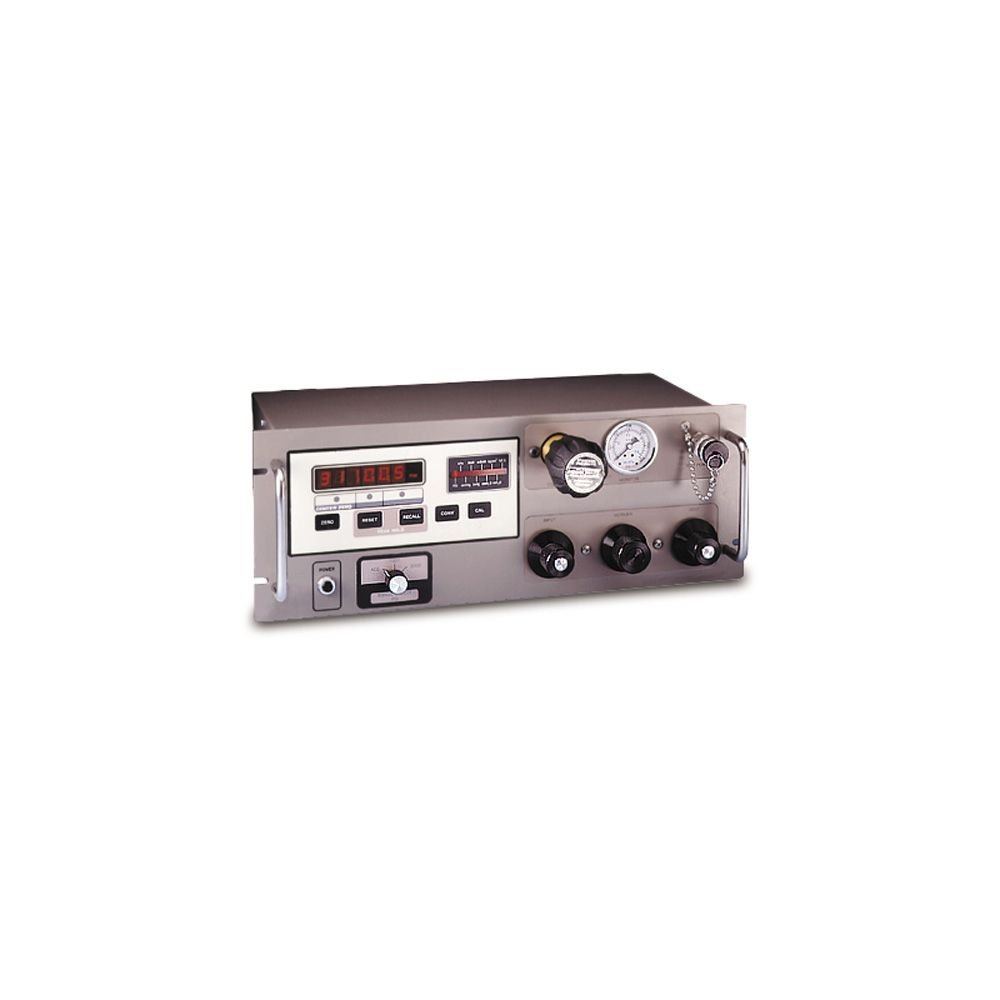

Condec UPS3110 w/ Rack Mount Pneumatic Pressure Standard
Condec UPS3110AFCD (Rack Mount) resolves centralized laboratory calibration bottlenecks through a silicon piezoresistive sensor and rack-mount manifold system to provide ±0.05% FS accuracy for industrial coefficient characterization.
- Display Spec: 6-digit rack-mount digital standard display
- Precision Metric: ±0.05% Full Span (FS) precision
- Digital Interface: RS-232 and IEEE-488 LabVIEW integration
- Power Range: 115/230 VAC dual-voltage mains
- Field Usage: Centralized lab standard for characterizing gauge coefficients
Compliance: NIST, ISO/IEC 17025, and MIL-STD-45662A.
$2,714.00
In Stock
Condec UPS3110 Rack Mount Pressure Standard Technical Specs
| Brand | Condec (Eaton) |
| Model SKU | UPS3110AFCD (Rack Mount) |
| Country of Origin | United States |
| Specific Operating Range | 0 to 10,000 psi (Configurable Pneumatic) |
| Accuracy Class | ±0.05% FS (Full Span) |
| Resolution | 0.001% FS (Max 6 digits) |
| Piston-Cylinder / Sensor Material | Silicon Piezoresistive / 316 SS |
| Temperature Compensation | 0°C to 50°C (Digital Mapping) |
| Media Compatibility | Clean Dry Air / Non-corrosive Gases |
| Gravity Correction | N/A (Internal Microprocessor) |
| Data Logging Capacity | RS-232 / IEEE-488 Data Logging Integration |
| Interface & Port Type | 1/4" NPT Female Quick-Disconnect (Rack Ports) |
| Power & Battery Life | 115/230 VAC 50/60Hz |
| Safety & Protection | Electronic Overpressure Limit + Mechanical Relief Valve |
| Compliance | NIST, ISO/IEC 17025, MIL-STD-45662A |
| Warranty | 1-Year Standard |
| Industrial Application | Centralized laboratory calibration standard for characterizing individual coefficients. |
