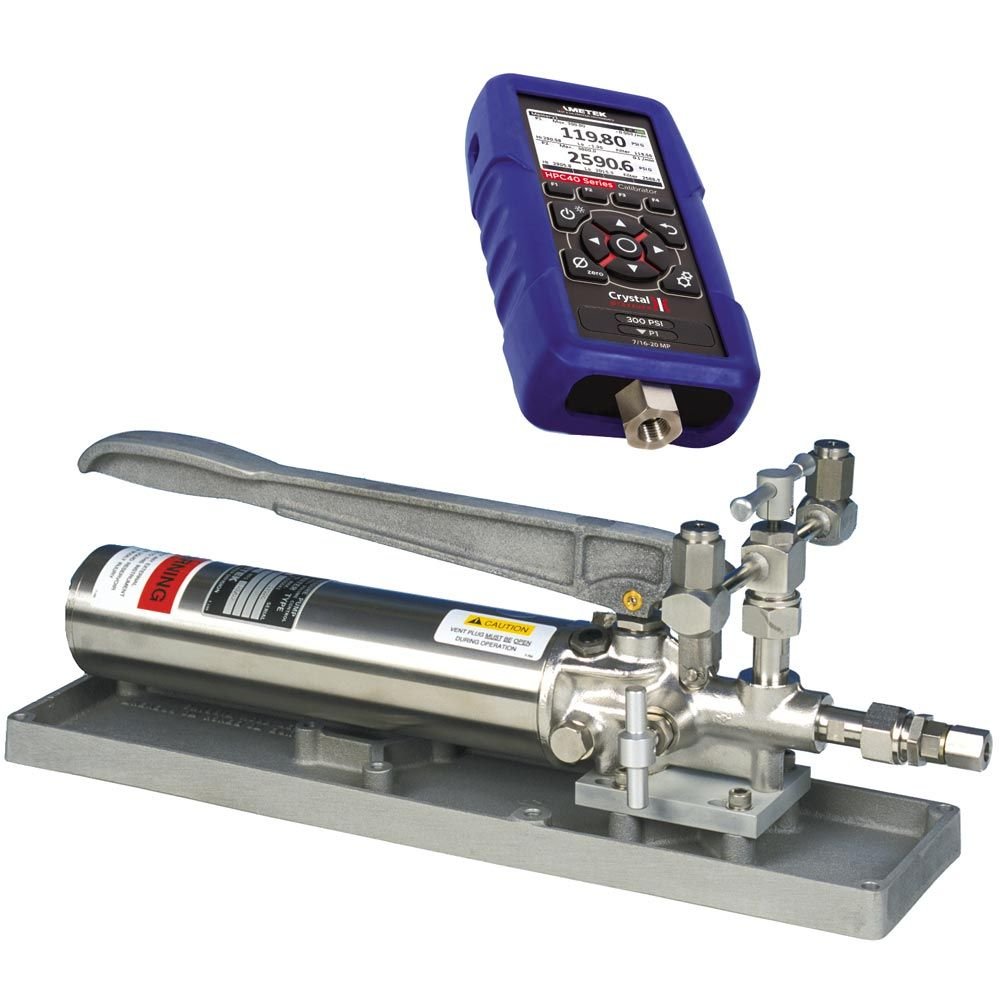

Crystal Engineering HPC41-10KPSI-FOV w/ HPC40 Pump System, 10K psi, w/T-1-CPF
Crystal Engineering HPC41-10KPSI-FOV resolves oil-media viscosity drift through active compensation and tungsten carbide internals to ensure ±0.1% accuracy for high-fidelity heavy machinery sensor audits.
- Display Spec: 32,000 reading digital logging interface
- Precision Metric: ±0.1% of Reading (Oil Optimized)
- Digital Interface: T-1-CPF Oil System / CrystalControl integration
- Power Range: (3) AA Alkaline batteries (Up to 10,000 psi)
- Field Usage: Calibration of hydraulic torque wrenches and heavy machinery sensors
Compliance: NIST Traceable, ISO/IEC 17025, and ANSI Z540.
$2,938.00
In Stock
Crystal Engineering HPC41-10KPSI-FOV (Oil) Hyper-Complete Specs
| Brand | AMETEK Crystal Engineering |
| Model SKU | HPC41-10KPSI-FOV (Oil Optimized) |
| Country of Origin | United States |
| Specific Operating Range | 0 to 10,000 psi (700 bar) |
| Accuracy Class | ±0.1% of Reading; Characterized for oil-media viscosity |
| Resolution | 1 psi; 0.1 bar; 10 kPa |
| Piston-Cylinder / Sensor Material | Tungsten Carbide / 316 Stainless Steel / Brass fittings |
| Temperature Compensation | -10°C to 50°C (Active Compensation) |
| Media Compatibility | Hydraulic Oil; Synthetic Oils |
| Gravity Correction | N/A (Electronic correction) |
| Data Logging Capacity | 32,000 readings; Data Logging Integration via CrystalControl |
| Interface & Port Type | T-1-CPF Oil System; 1/4" NPT and BSP adapters |
| Power & Battery Life | (3) AA Alkaline; 150 hours typical |
| Safety & Protection | IP67; Overpressure flash at 110% FS; Burst pressure 3x FS |
| Long-term Stability | ±0.02% FS per year |
| Compliance | NIST Traceable, ISO/IEC 17025, ANSI Z540 |
| Warranty | 1-Year Standard |
| Industrial Application | Calibration of hydraulic torque wrenches and heavy machinery pressure sensors. |
