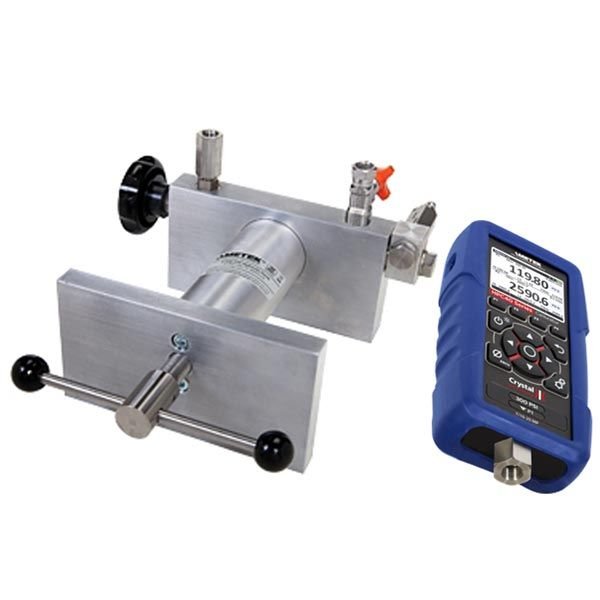

Crystal Engineering HPC41-1KPSI-DOX w/ HPC40 Pump System, 1K psi, w/ P-018-CPF
$2,282.00
In Stock
Crystal Engineering HPC41-1KPSI-DOX (Oil) Technical Specs
| Brand | AMETEK Crystal Engineering |
| Model SKU | HPC41-1KPSI-DOX w/ P-018-CPF |
| Country of Origin | United States |
| Specific Operating Range | 0 to 1,000 psi (70 bar) |
| Accuracy Class | ±0.1% of Reading (20% to 100% of Range) |
| Resolution | 0.01 psi; 0.001 bar |
| Piston-Cylinder / Sensor Material | 316 Stainless Steel Diaphragm |
| Temperature Compensation | -10°C to 50°C (Fully Compensated) |
| Media Compatibility | Hydraulic Oil (Petroleum based) |
| Gravity Correction | N/A (Electronic Automatic) |
| Data Logging Capacity | Data Logging Integration via CrystalControl Software |
| Interface & Port Type | CPF (Crystal Pressure Fitting) |
| Power & Battery Life | (3) AA Alkaline; 150 hours typical |
| Safety & Protection | IP67; Flash Overpressure Warning at 110% FS |
| Compliance | NIST Traceable, ISO/IEC 17025 |
| Warranty | 1-Year Standard |
| Industrial Application | Field-ready oil-based calibration for Signal Integrity management. |
