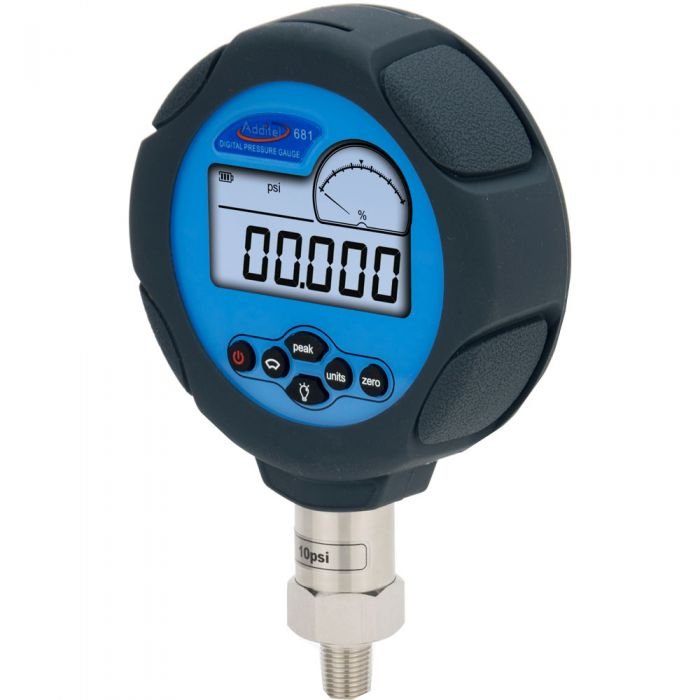

Additel ADT681-05-DP10-H2O-DL Dig Press Test Gauge
Additel ADT681-05-DP10-H2O-DL eliminates differential pressure logging hurdles via an IP67 submersible housing and 21,843-record memory to maintain ±0.05% FS accuracy for water column audits.
- Display Spec: Backlit LCD with % fan-shaped graph scale
- Precision Metric: ±0.05% Full Span (FS) accuracy
- Digital Interface: Internal data logging (up to 21,843 records)
- Power Range: 9V battery (±10 inH2O range)
- Field Usage: Digital pressure test gauge for water column signal validation
Compliance: NIST Traceable with Data Included.
$10,368.00
In Stock
Additel ADT681 Digital Pressure Test Gauge Technical Specs
| Brand | Additel |
| Model Number | ADT681-05-DP10-H2O-DL |
| Pressure Range | ±10 inH2O (Differential) |
| Accuracy | ±0.05% FS |
| Resolution | 5-Digit Resolution |
| Selectable Units | 11 Selectable Pressure Units |
| Overpressure Limit | Warning Flash at >120% FS |
| Process Connection | 1/4" NPT Male |
| Wetted Parts Material | 316L Stainless Steel |
| Housing Material | Die-cast Aluminum / Polycarbonate |
| Power Supply | 9V Battery or Optional AC Adapter |
| Output Signal | Visual Display Only |
| Display Type | Backlit LCD |
| Dial Indication | % Fan-Shaped Graph Scale for visual reference |
| Operating Temperature | 14°F to 122°F / -10°C to 50°C |
| Compensated Temperature | Fully Temperature Compensated |
| IP / NEMA Rating | IP67 Submersible in 1 Meter Water |
| Hazardous Location Safety | Standard Industrial |
| Calibration Certificate | NIST Traceable Calibration with Data Included |
| Data Logging | Up to 21,843 records: Date, Time, Pressure, Temp |
| Mounting Type | Bottom Mount |
