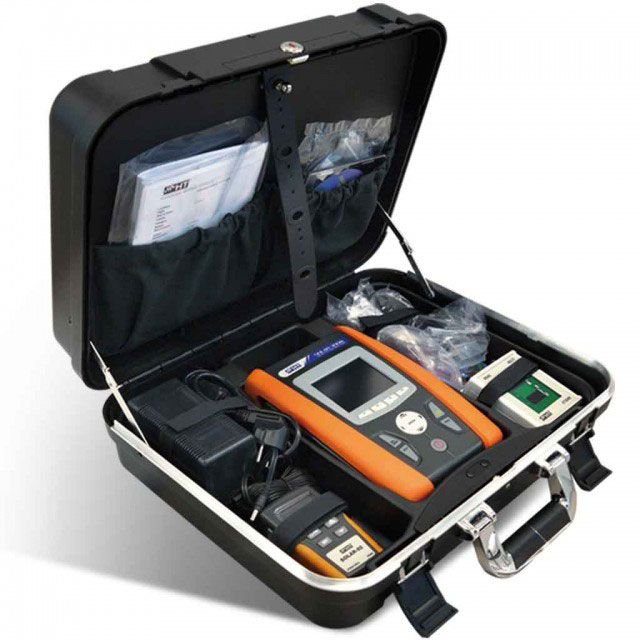

HT Instruments HV00300N-0202 Solar Efficiency & Power Analyzer
HT Instruments HV00300N-0202 optimizes photovoltaic plant performance audits using integrated PV yield and inverter efficiency analysis to ensure Class S power quality compliance.
- Display Spec: Touchscreen Graphic Color LCD
- Precision Metric: IEC 61000-4-30 Class S compliance
- Digital Interface: USB and WiFi (via external bridge)
- Power Range: 3 Hours Continuous (1.0 kg portable unit)
- Field Usage: PV plant performance audits and energy profiling
Compliance: IEC 61000-4-30 Class S and CAT IV 600V.
$2,570.00
In Stock
HT Instruments HV00300N-0202 Solar Analyzer Specs
| Brand | HT Instruments |
| Model Number / SKU | HV00300N-0202 (SOLAR300N) |
| Country of Origin | Italy |
| Instrument Type | 3-Phase Solar Efficiency & Power Quality Analyzer |
| Number of Channels | 5 Voltage / 4 Current Channels |
| Measurement Parameters | PV Yield, Inverter Efficiency, V, A, W, PF, THD |
| Power Quality Features | Anomalies Detection (Sags, Swells) |
| Harmonics Analysis | Up to 49th Order |
| Sampling Rate | Class S Accuracy Compliance |
| Accuracy Class | IEC 61000-4-30 Class S |
| Logging Duration & Interval | Up to 1 year with Integrated Data Log |
| Memory Capacity | 15 MB Internal / Expandable via USB |
| Communication/Interface | USB, WiFi (via external bridge) |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
| Display Type | Touchscreen Graphic Color LCD |
| Battery Life / Backup | 3 Hours Continuous use |
| IP Rating / Protection | IP40 |
| Standard Warranty | 2 Years |
| Dimensions & Weight | 235 x 165 x 75 mm | 1.0 kg |
| Application | Photovoltaic Plant Performance Audits and Energy Profiling |
