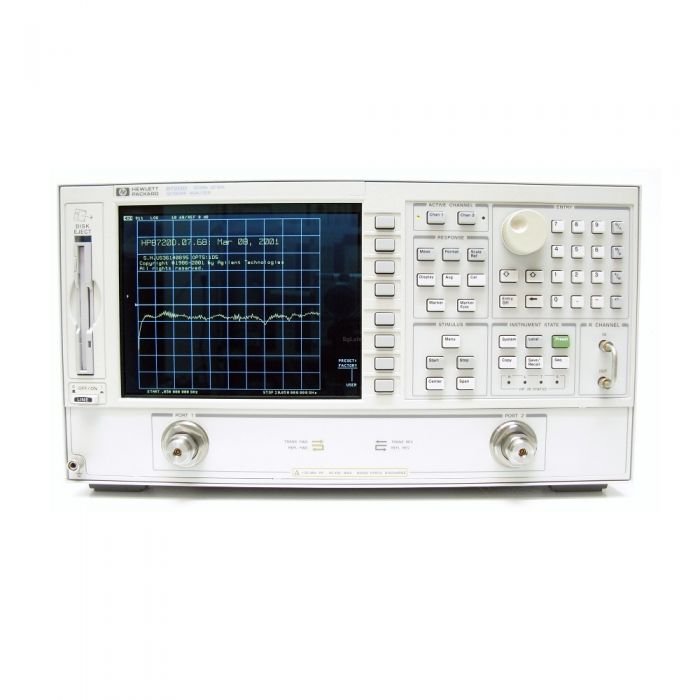

Used Keysight 8720D Microwave Vector Network Analyzer 2-Port 20GHz
$6,653.00
In Stock
Description
Key Features & Specifications
- 50 MHz to 13.5, 20, or 40 GHz frequency coverage
- New processor makes measurements and data transfers up to seven times faster
- Fast-sweeping, built-in synthesized source
- Integrated solid-state switching S-parameter test set
- Vecter receiver, error correcton, time domain
- Up to 105 dB dynamic range
Keysight 8720D Microwave VNA Specs
| Brand | Keysight |
| Model Number / SKU | 8720D |
| Country of Origin | USA |
| Instrument Type | Microwave Vector Network Analyzer |
| Frequency Range | 50 MHz to 20 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Stability | +/- 7.5 ppm |
| Analysis/Real-Time Bandwidth | N/A |
| DANL / Noise Floor | -100 dBm |
| Phase Noise | -95 dBc/Hz @ 10 kHz offset |
| Maximum Input Power | +20 dBm |
| VSWR / Return Loss | 1.4:1 |
| Impedance | 50 Ohm |
| Connector Type | 3.5 mm (m) |
| Modulation Support | Full 2-Port Error Correction |
| Interface/Connectivity | GPIB |
| Display Type & Size | Integrated CRT |
| Standard Warranty | 90 Days (Used) |
| Dimensions & Weight | 267 x 425 x 502 mm | 34 kg |
| Application | Microwave Device Performance Analysis and Passive Component R&D |
