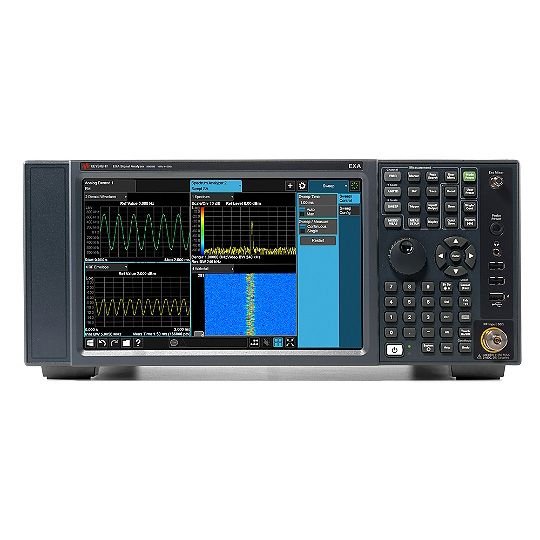

Used Keysight N9010B-503 EXA Multi-touch Signal Analyzer 10Hz-3GHz
$8,554.00
In Stock
Description
Product Highlights
- With Option 503, Frequency response, Preamp on, Input voltage standing wave ratio (VSWR) (≥ 10 dB input attenuation), 1 dB gain compression (two-tone), Displayed average noise level (DANL), Second harmonic distortion (SHI), Third-order intermodulation distortion (TOI), RF input connector Standard: Type-N female, 50 Ω nominal
- Address diverse needs with the fast, flexible EXA
- Get the most cost-effective analysis for millimeter-wave measurements
- Measure the smallest signals in the presence of large ones with best-in-class level accuracy, DANL & TOI
- Perform power measurements quickly at discrete frequency points with list-sweep mode
- Simplify testing with X-Series measurement apps
Keysight N9010B-503 EXA Multi-touch Signal Analyzer Specs
| Brand | Keysight |
| Model Number / SKU | N9010B-503 |
| Country of Origin | USA |
| Instrument Type | Multi-touch Signal Analyzer (3.6 GHz) |
| Frequency Range | 10 Hz to 3.6 GHz |
| Frequency Resolution | 0.01 Hz |
| Frequency Stability | +/- 0.17 ppm |
| Analysis/Real-Time Bandwidth | Up to 40 MHz |
| DANL / Noise Floor | -167 dBm/Hz |
| Phase Noise | -109 dBc/Hz @ 10 kHz offset |
| Maximum Input Power | +30 dBm |
| VSWR / Return Loss | 1.2:1 |
| Impedance | 50 Ohm |
| Connector Type | N-Type (f) |
| Modulation Support | 5G NR, IoT, WLAN (X-Series Apps) |
| Interface/Connectivity | LAN, USB 3.0, GPIB |
| Display Type & Size | 10.6-inch Multi-touch Screen |
| Standard Warranty | 1 Year (Used) |
| Dimensions & Weight | 177 x 426 x 368 mm | 15 kg |
| Application | High-Speed Manufacturing Test for Consumer Wireless Electronics |
