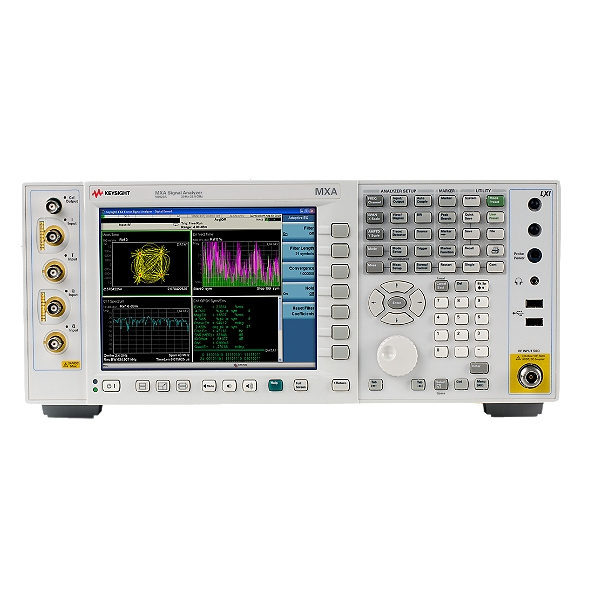

Used Keysight N9020A-508 MXA Signal Analyzer 10Hz-8.4GHz

Description

Product Highlights

The Keysight (formerly Agilent) N9020A-508 MXA signal analyzer drives signal and spectrum analysis to the next generation offering the highest performance in a midrange analyzer. The Keysight N9020A-508 offers a frequency range of 10 Hz to 8.4 GHz (DC coupled) and 10 MHz to 8.4 GHz (AC coupled). Innovative breakthroughs enable the N9020A-508 MXA signal analyzer to achieve the industry’s fastest signal and spectrum analysis eliminating the compromise between speed and performance. – 30 to 300% faster than all other spectrum and signal analyzers – 25 MHz analysis bandwidth – 15 dBm TOI, -151 dBm/Hz DANL (-154 dBm/Hz typical), 0.3 dB absolute amplitude accuracy and 73 dB W-CDMA ACLR dynamic range (78 dB typ. with noise correction on) – Spectrum analysis, mobile WiMAX, W-CDMA, HSDPA/HSUPA and phase noise measurement applications – 89601A VSA software runs inside the MXA.

• 10 Hz to 3.6, 8.4, 13.6, or 26.5 GHz
• Internal preamplifier options up to 26.5 GHz
• 25 MHz (standard) or 40 MHz (optional) analysis bandwidth
• 30 to 300% faster than all other spectrum and signal analyzers
• 4 ms marker peak search
• 75 ms measurement/mode switching speed
• 0.23 db absolute amplitude accuracy
• 20 dBm third order intercept (TOI)
• -166 dBm displayed average noise level (DANL) with preamplifier
• MXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose
• Modern connectivity: LXI-C certified, USB, 100based-T LAN, GPIB
• Programming remote language compatibility with PSA, 8566/68, and 856x
• Common X-Series user interface / Open Windows operating system
