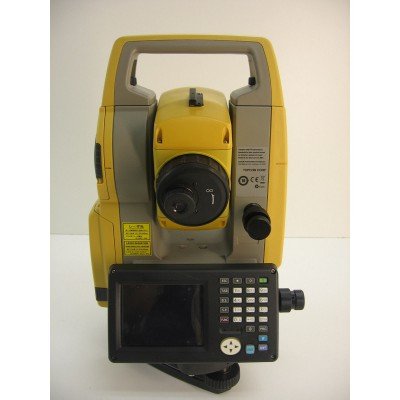

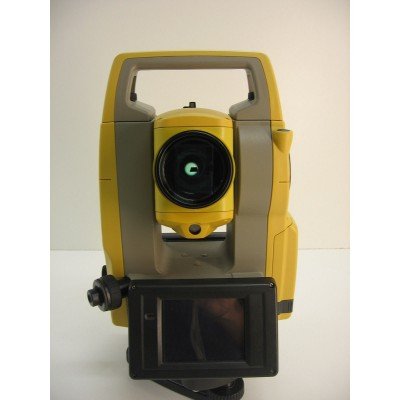

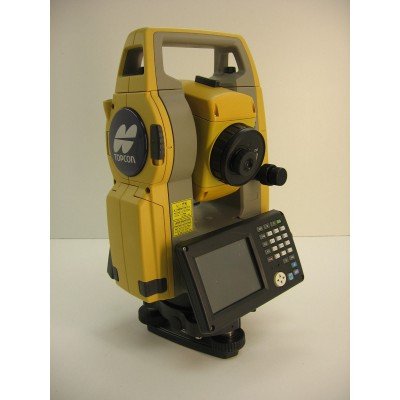

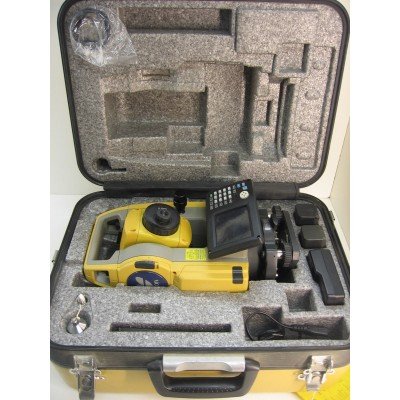

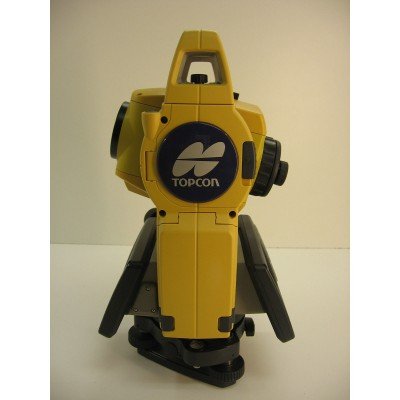

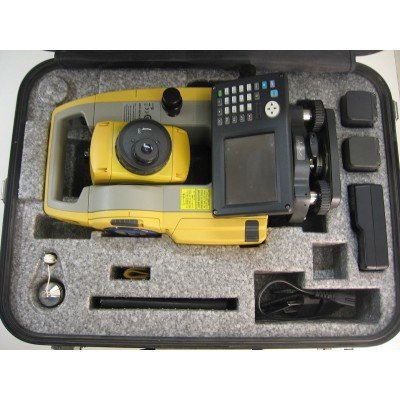

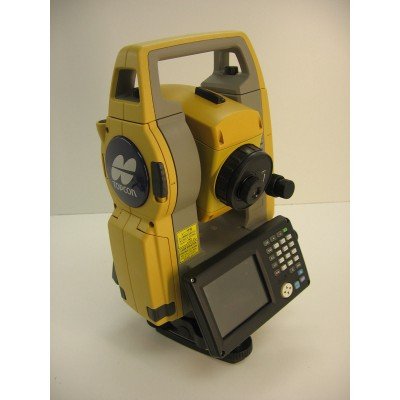

Used Topcon OS-101 1″ Prismless & Wireless Total Station w/ MAGNET Field

Description

Topcon OS-101Topcon’s new OS Series Total Stations – New Advanced Design with Superior TechnologyThe OS is a professional grade compact design Total Station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.FeaturesAdvanced Security & Maintenance with New TSshieldMAGNET Field On-boardExclusive LongLink Communications FunctionalityFast and Powerful EDMAdvanced Angle AccuracyWorld’s First TSshield Remote Security and Notification SystemDisable your instrument remotely if lost or stolenGet notified of Firmware updatesOnline instrument operational historyThe OS is the perfect Total Station for many field applications including:Land Surveying PropertyLand Surveying Topo & StakeoutEarthwork VolumesBuilding Interior LayoutConstruction of RoadsLaw Enforcement MappingPrimary OS features include:Exclusive LongLinkTMUltra-Powerful, Advanced EDM300m  Wireless Link to ControllerField Controller at the Prism PoleMore accurate code descriptionsCollect point Images at the measurement point.500m non-prism range4000m prism rangeRed/Green GuidelightCoaxial red laser pointerPinpoint, precise beamspotAdvanced Angle Encoder SystemEDM Trigger Key“Best in Class” 1” angle accuracy availableIncorporates exclusive IACS(Independent Angle Calibration System)on 1” & 2” modelsSelf calibrationProven High Accuracy TechnologyPerfect touch locationPromotes angle stabilityNo torque when measuring on-boardWater/Dust proofEasy for gloved handsStandard OS package includes:Large GraphicsEasy to ReadColor TouchscreenAlphanumeric Keyboard4-Way Navigation ButtonOS Total StationBattery and Charger (one battery and charger included)Lens Cap and HoodTool KitUSB stick with digital ManualQuick GuideCarry Case and Carry StrapsAchieve higher levels of production with MAGNET Field on-board softwarePart of the MAGNET Solution, MAGNET Field On-board runs directly on the OS Total Station touch screen. Utilize the on-board USB port to plug a USB flash drive into the side panel for fast file transfer. Or for more traditional transfer, use a USB mini cable and transfer files to MAGNET Office Tools.With direct exchange between MAGNET Field On-board and MAGNET Office Tools, you will see an increase in overall productivity.All of the Total Station functions are available directly on-board. In Survey, there is Topo, X-Section, Find Station, Tape Dimension, and Missing Line. In Stake, there is Points, Lines, Offsets, Surface, Point in Direction, Curve, Real-Time Roads, Road, Slope, and Linework staking. Plus many calculation functions like Inverse, Intersection, Curves, Area, Corner Angle, Offsets, Adjust, Traverse, and DTM.GeneralWeight12.3 lbs (5.6 kg)Dimensions7.5 in x 7.5 in x 13.7 in (19.1 cm x 19 cm x 34.8 cm)Warranty2-yearProtection ClassIP65 (dust proof and water jets resistant)Internal Memory750 MBSoftwareMAGNET FieldGuide LightGreen and red LED; Operating time: 1.3 to 150 m (4.3 to 490 ft)Angle MeasurementMeasuring Method/Reading SystemIndependent Angle Calibration System (IACS)Minimum Reading0.5-second/1-secondAccuracy1-secondDistance MeasurementUnit of Measure (distance display)m/ftEDM Accuracy (Precision)±(2mm   2ppm x D) for prism; ±(3mm   2ppm x D) for no prismMinimum Reading500 m (1,640 ft)Tilt Sensor/CompensatorRange± 6TypeLiquidMethodElectronic AutomaticBattery/PowerPower SourceRechargeable Li-ion batteryBattery Life20 hoursBattery Life AlertYesTelescopeLength of Tube6.7 in (17.1 cm)ImageErectDiameter of Objective Lens (Aperture)1.9 in (48mm) EDMMagnification30xField of View1 degree 30 arcminResolving Power2.5 arcsecMinimum Focus Distance1.3 m (4.3 ft)Reticle Illumination5 brightness levelsReflectorlessyesDisplay and KeypadTypeSemi-transmissive TFT QVGA color LCDSidesDualKeysAlphanumericTouchscreenyesBacklightyesTemperatureOperating-4Fº~140ºF (-20ºC~60ºC)ApplicationsSurveying and ConstructionYesMapping and GIS (geographic information systems)yesUtilitiesyesEnvironment StudiesyesGeomarkingyesArchaeologyyesAccident ReconstructionyesMeasurement Range (under fair weather conditions)Single Prism5,000m (16,400 ft)Triple Prism6,000m (19,680 ft)No Prism500 m (1,640 ft)Mini Prism500 m (1,640 ft)Reflector Sheet500 m (1,640 ft)FunctionsCoordinate Measurement PointYesAngle and Distance Stake OutyesStake Out LineyesOffsetsyesMissing LineyesRemote ElevationyesResectionyesArea CalculationyesMeasurement TimeFine0.9-secondRapid0.7-secondTracking0.3-secondLaser PlummetAccuracy±1.0 mm/1.3 mClass2Wavelength635 nmInterfaceBluetoothClass 1 LongLink technologyUSBType A and mini BPin PortRS-232COperating SystemWindows CE 6.0Includes:oOS Total StationoBattery (BDC70)oBattery ChargeroCarry Case
