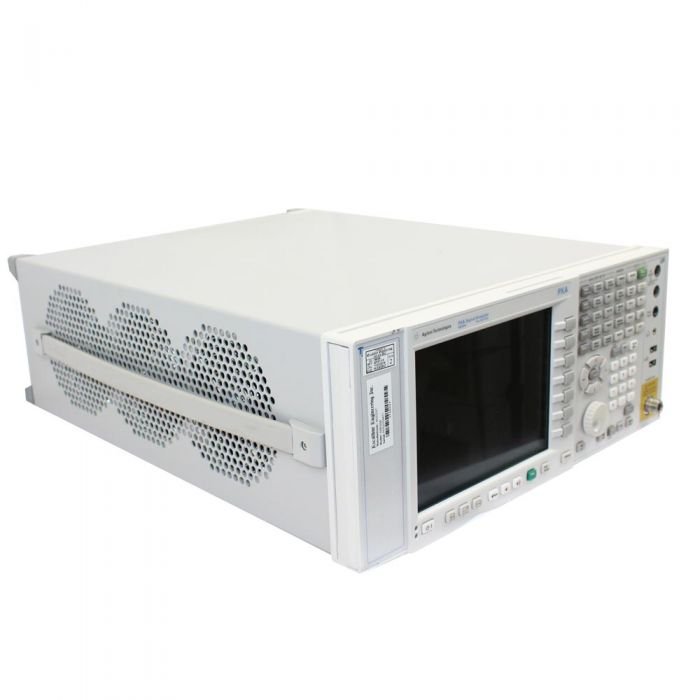

Used Keysight N9030A PXA Signal Analyzer 3Hz-26.5GHz
$19,829.00
In Stock
Description
Product Highlights
- Drive your evolution in the demanding applications of aerospace, defense & commercial communications with 160 MHz analysis bandwidth & industry-leading performance
- Extend frequency up to 110 GHz with Keysight smart mixers; to THz with others
- Capture transient or intermittent signals with real-time spectrum analysis
- Simplify application-specific testing with X-Series apps: phase noise, noise figure, LTE-Advanced, WLAN & more
- Perform deeper troubleshooting with the 89600 VSA software
Installed options:
- 526 – Frequency range, 3 Hz to 26.5 GHz
- EA3 – Electronic attenuator, 3.6 GHz
- EMC – Basic Precompliance EMI
- LNP – Low noise path
- P26 – Preamplifier, 26.5 GHz
- DP2 – Digital processor with 2 GB capture memory
- EP1 – Enhanced phase noise
- LFE
- NUL – LO/IM nulling
- PFR – Precision frequency reference
Keysight N9030A PXA Signal Analyzer Specs
| Brand | Keysight |
| Model Number / SKU | N9030A |
| Country of Origin | USA |
| Instrument Type | PXA Signal Analyzer |
| Frequency Range | 3 Hz to 26.5 GHz |
| Frequency Resolution | 0.001 Hz |
| Frequency Stability | +/- 0.03 ppm |
| Analysis/Real-Time Bandwidth | Up to 160 MHz |
| DANL / Noise Floor | -172 dBm/Hz |
| Phase Noise | -129 dBc/Hz @ 10 kHz offset |
| Maximum Input Power | +30 dBm |
| VSWR / Return Loss | 1.2:1 @ 26.5 GHz |
| Impedance | 50 Ohm |
| Connector Type | 3.5 mm (m) |
| Modulation Support | Digital Demodulation, Phase Noise, Noise Figure |
| Interface/Connectivity | LAN, USB, GPIB, LXI |
| Display Type & Size | 10.4-inch LCD |
| Standard Warranty | 1 Year (Used) |
| Dimensions & Weight | 177 x 426 x 368 mm | 22 kg |
| Application | High-end R&D, Radar System Design, and Satellite Signal Monitoring |
